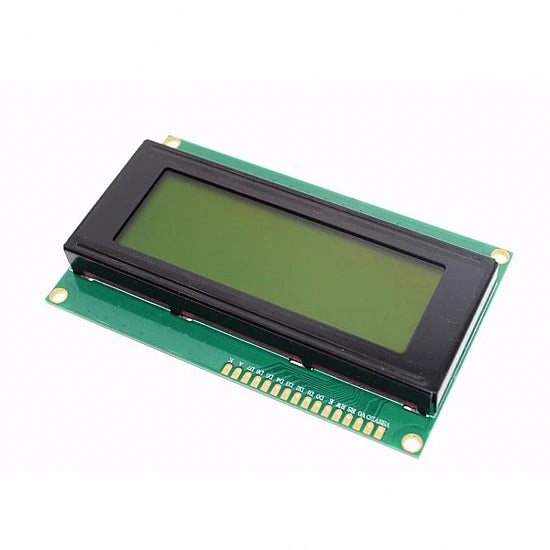

20x4 Parallel Character LCD Display LCD2004 (Green Backlight)
A 20-character by 4-line parallel character LCD (LCD2004) with a green backlight. It connects over a standard 4 or 8-bit parallel interface using a 16-pin header.
Specifications
- 20 characters x 4 lines
- Black characters on green backlight
- 5V DC
- 4 or 8-bit parallel interface
- JHD629-204A equivalent controller
- 16-pin male header
- Dimensions 9.8 x 6 x 1.2 cm
Compatible with
- Arduino
- Most microcontrollers
- 4-bit and 8-bit parallel control
- Works with I2C backpack (sold separately)
Build it with Compoden's AI
Tell Compoden's AI build assistant what you want to display and it picks a compatible screen, checks it against your board's interface and voltage, and hands you the wiring and the driver code matched to the exact module - all from real in-stock parts.
Built and Backed by Compoden
We have spent 10 years supplying displays, boards, and parts to makers, schools, and engineering teams across India. Every Compoden order includes our AI build companion to help you wire the screen and write the driver code.
How many characters does it show?
20 characters per line across 4 lines.
What supply voltage?
5V DC.
What controller does it use?
A JHD629-204A equivalent controller.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
