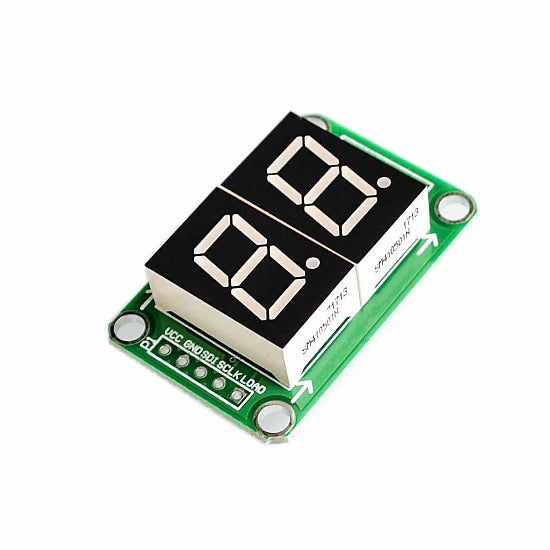

74HC595 2 Digit 0.5inch 7 Segment Digital Tube LED Display Module

A 2-digit 0.5 inch 7-segment display module driven by two 74HC595 shift registers, controlled over a 3-wire serial interface. Onboard band-limiting resistors give each tube uniform brightness.

Specifications

• two 74HC595 shift register driver ICs
• 2 digits
• 0.5 inch digit height
• red LED
• 3-wire serial interface plus 2 power lines
• operating voltage 3 to 6VDC
• onboard current-limiting resistors per tube
• four mounting holes
• dimensions 38mm L x 25mm W x 11.6mm H

Compatible with

• Arduino
• ESP32
• ESP8266
• Raspberry Pi
• any microcontroller with 3 free GPIO pins
