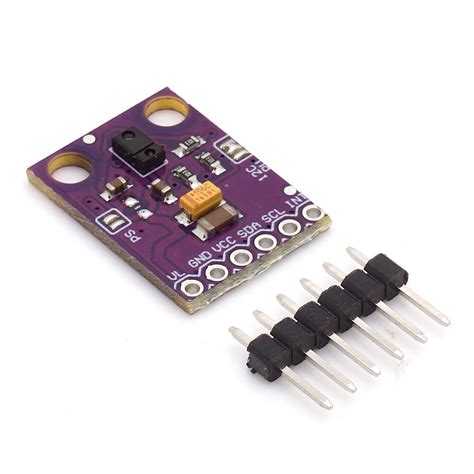

APDS9960 RGB and Gesture Sensor Module – I2C Interface
APDS9960 RGB and Gesture Detection Sensor Module with I2C Interface
The APDS9960 is a versatile sensor module capable of RGB color sensing, ambient light measurement, proximity detection, and gesture recognition. It communicates over I2C, making it easy to integrate with microcontrollers like Arduino and Raspberry Pi. Ideal for building touchless interfaces, color sorting machines, and interactive lighting systems.
Key Specifications
| Specification | Value |
|---|---|
| Sensor Type | APDS9960 (RGB, Ambient Light, Proximity, Gesture) |
| Communication Interface | I2C (address 0x39) |
| Operating Voltage | 2.4V to 3.6V DC (module includes voltage regulator for 5V tolerance) |
| Gesture Detection Range | Up to 10 cm |
| RGB Color Sensing Resolution | 16-bit per channel (R, G, B, Clear) |
| Ambient Light Sensing Range | 0 – 20,000 lux |
What You Can Build With This
- Gesture-controlled robot or drone
- Color sorting machine for M&M's or LEGO bricks
- Touchless light switch or lamp dimmer
- Proximity-activated interactive art installation
Compatibility
This module works with any microcontroller or single-board computer that has an I2C interface, including Arduino Uno, Nano, Mega, Raspberry Pi, and ESP32. The on-board voltage regulator allows safe connection to both 3.3V and 5V logic levels. Pair with the Adafruit APDS9960 library for rapid prototyping.
Wiring Notes
Connect VCC to 3.3V (or 5V if using the regulator), GND to GND, SCL to the I2C clock line, and SDA to the data line. Most development boards include built-in pull-up resistors on I2C; if not, add 4.7kΩ resistors from SCL and SDA to VCC.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, the APDS9960 works with Arduino Uno, Nano, and Mega. Use the popular Adafruit APDS9960 library available in the Arduino Library Manager for quick setup.
Can it detect gestures through a glass surface?
Gesture detection works best with direct line-of-sight. Thin, clear glass may still work, but performance degrades with thicker or tinted materials.
Does this module require an external power supply?
No, it is powered directly from the microcontroller's 3.3V or 5V pin, drawing only a few milliamps.
