Capacitive Soil Moisture Sensor V2.0 – Corrosion-Resistant Analog Probe
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Capacitive Soil Moisture Sensor V2.0 – Corrosion-Resistant Analog Output

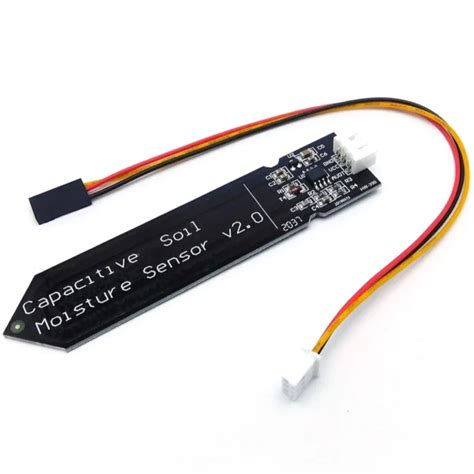

The Capacitive Soil Moisture Sensor V2.0 measures soil moisture by detecting changes in capacitance, not resistance, making it resistant to corrosion. It outputs an analog voltage that corresponds to the moisture level, suitable for microcontrollers with ADC inputs. This sensor is ideal for automated irrigation, plant monitoring, and smart agriculture projects.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 3.3V – 5.5V DC |
| Output Signal | Analog (0V – 3.0V at 3.3V supply) |
| Sensor Type | Capacitive (non-corrosive) |
| Interface | 3-pin header (VCC, GND, AOUT) |
| Dimensions | 98mm × 23mm × 6mm |
| Weight | 15g |
What You Can Build With This
- Automatic plant watering system with Arduino and pump
- Soil moisture monitoring dashboard with ESP32 and Blynk
- Smart garden with Raspberry Pi and relay control
- Low-power wireless sensor node for agriculture
Compatibility
This sensor works with any microcontroller that supports analog input, such as Arduino Uno, Nano, Mega, ESP32, ESP8266, and STM32 boards. For Raspberry Pi, pair it with an external ADC like the MCP3008. It operates at both 3.3V and 5V logic levels, with no level shifting required.
Wiring Notes
Connect VCC to 3.3V or 5V, GND to ground, and AOUT to an analog input pin. For Raspberry Pi, use an MCP3008 ADC and connect the sensor output to one of its analog channels. No pull-up resistor is needed; the analog signal directly corresponds to moisture.
Is this compatible with Arduino?
Yes, connect AOUT to any analog pin (A0-A5 on Uno) and read the voltage using analogRead(). The output voltage changes with moisture; calibrate it with a dry and a wet reading.
Can this sensor be left in soil permanently?
Its capacitive design resists corrosion, but avoid submersion in water. For long-term deployment, protect the electronics with conformal coating and ensure the PCB edge is not continuously wet.
How accurate is the moisture reading?
The sensor provides a relative measurement; the analog value changes with moisture, and which end reads higher depends on the board, so measure it first. For absolute accuracy, calibrate by taking readings in completely dry and saturated soil, then map the range in your code.
Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
