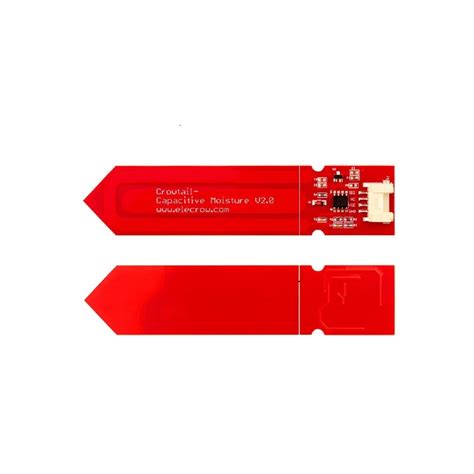

Elecrow Crowtail Capacitive Moisture Sensor V2.0

The Elecrow Crowtail Capacitive Moisture Sensor V2.0 measures soil moisture by capacitance rather than resistance, avoiding electrode corrosion and delivering stable readings over time. Designed for Arduino, ESP8266, and other microcontrollers, it outputs an analog voltage proportional to moisture level, making it a reliable choice for automatic plant watering systems, greenhouse monitoring, and IoT agriculture projects.

Key Specifications

Specification Value
Operating Voltage 3.3V – 5V DC
Output Signal Analog (0 – VCC)
Probe Material FR‑4 with capacitive traces
Connector Type Crowtail (compatible with Grove)
Dimensions 99mm × 20mm × 5mm (probe)

What You Can Build With This

Compatibility

The sensor works with any development board that accepts an analog input, including Arduino UNO, Mega, Nano, ESP32, ESP8266, and Raspberry Pi (via external ADC). Its 3.3V/5V tolerance makes it safe for both logic levels. Pair it with Crowtail base shields or standard Grove‑compatible converters for plug‑and‑play wiring.

Wiring Notes

Connect the sensor’s VCC and GND to your board’s power, then attach the analog signal pin to any analog input (A0 on Arduino). Avoid submerging the top edge of the probe in water to keep the connector dry. Insert the probe fully into the soil for consistent readings.

Is this compatible with Arduino UNO?

Yes, connect VCC to 5V, GND to GND, and the analog output to any analog pin such as A0. No additional libraries are needed—simply read the analog value.

How does capacitive moisture sensing differ from resistive sensors?

Capacitive sensors measure changes in dielectric constant rather than electrical resistance between electrodes. This eliminates direct current path through the soil, dramatically reducing probe corrosion and extending sensor life.

What output values represent dry vs. wet soil?

In dry soil, the output voltage is high (close to VCC). As moisture increases, voltage drops. Actual thresholds vary; it’s recommended to calibrate by reading serial values when the probe is in dry soil and in water–logged soil.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.

Pinout, specs and project ideas on Soldr →

Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
