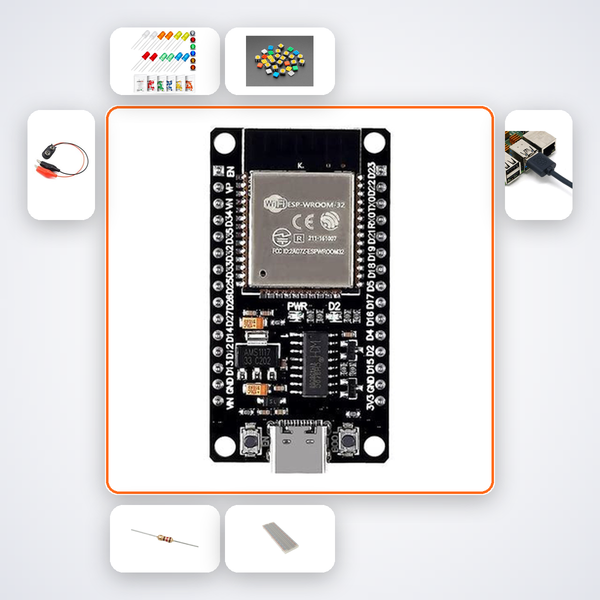

Build a Custom OTA Update System with Rollback and LED Status

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine deploying firmware updates wirelessly without ever connecting a USB cable, and having a safety net that rolls back automatically if an update fails. This kit gives you exactly that understanding, using a real ESP32 that controls three LEDs to visually signal OTA success, failure, and rollback. You'll move beyond basic Arduino sketches into professional embedded practices-scripting partition layouts, managing non-volatile storage, and living with a production-ready OTA workflow.

What You'll Build

You'll craft a robust ESP32 firmware that features multiple partitions-a factory app, two OTA slots, an NVS area for credentials, and a SPIFFS section for logs and assets. Three LEDs on the breadboard become your dashboard: green lights on successful update, red indicates a failed boot that triggers rollback, and yellow flashes during the OTA process. The physical feedback makes abstract partition concepts tangible.

What You'll Learn

• Design custom partition tables for ESP32 using ESP-IDF tools
• Implement Over-The-Air (OTA) updates with automatic rollback on failure
• Use Non-Volatile Storage (NVS) to preserve Wi-Fi credentials and settings across firmware changes
• Store runtime logs and assets in the SPIFFS flash filesystem

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is ideal for CBSE Class 11-12 students diving into IoT, B.Tech ECE/EEE undergraduates crafting a standout OTA project for their coursework, and Smart India Hackathon teams prototyping wireless sensor networks. It's also a perfect add-on for ATL Tinkering Labs seeking to move beyond basic Arduino into real-world embedded firmware architecture.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
