Additive Synthesis Organ Kit with Arduino Due + LED
Craft Pipe Organ Timbres with Arduino Due Additive Synthesis Kit — 16 Harmonic Drawbars
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This kit places you in the world of classic tonewheel organs: you’ll construct a module that generates lush, evolving timbres by summing 16 independent partial sine waves in real time on the Arduino Due’s ARM Cortex-M3. Each partial has a dedicated physical drawbar—eight rotary encoders—letting you shape complex harmonic spectra just like a vintage Hammond. The result is a sound-design playground for musicians, DSP students, and embedded audio engineers who want to explore additive synthesis without hunting down obscure components.
What You'll Build
You’ll assemble a desktop organ sound engine with eight drawbars to control 16 partials, a crisp 0.96-inch OLED display that shows harmonic levels, and stereo 3W speakers driven by a PAM8403 amplifier. The finished enclosure houses all electronics cleanly, giving you a live-performance instrument that outputs pipe organ, string, and brass tones with zero perceptible latency. A MIDI keyboard can be connected via UART (code examples provided) to play polyphonically across a standard 49‑note range or more.
What You'll Learn
- Designing and implementing additive synthesis algorithms on ARM Cortex-M3 using the Arduino Due’s high-speed I²S-style DAC interface
- Controlling the MCP4728 quad DAC via I²C to achieve four simultaneous 12‑bit audio outputs
- Building a real‑time UI with rotary encoders, an OLED display, and interrupt‑based input handling in Arduino C++
- Applying harmonic series theory and drawbar organ architecture to shape musical timbres dynamically

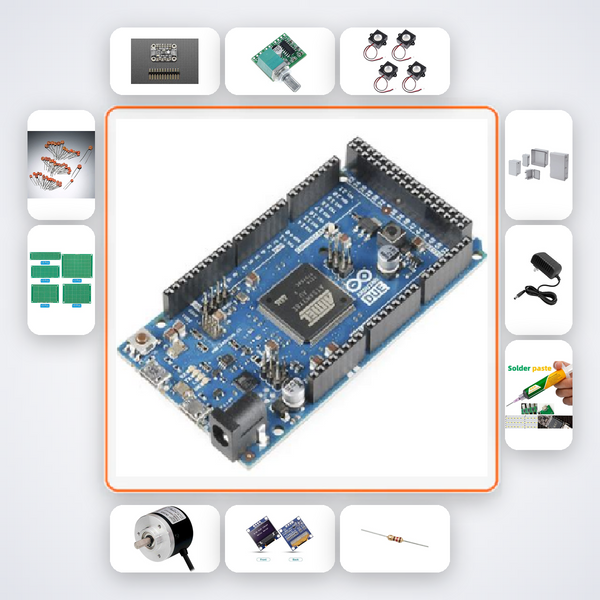

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Due | 1 |
| MCP4728 Quad DAC | 1 |
| PAM8403 Amp | 1 |
| 3W 8Ω Speaker | 2 |
| Rotary Encoder | 8 |
| 0.96in OLED | 1 |
| 10kΩ Resistors | 15 |
| 100nF Caps | 15 |
| PCB Prototype Board | 3 |
| Enclosure Box | 1 |
| 9V 2A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This advanced kit is aimed at audio DSP hobbyists, final‑year B.Tech ECE/EEE students (IIT, NIT, VIT, BITS) working on real‑time embedded audio projects, and professional engineers prototyping musical instruments. It’s an excellent choice for Smart India Hackathon hardware tracks that demand live synthesis and for ATL tinkering lab mentors who want to demonstrate additive synthesis with tangible drawbar control. Music producers exploring Indian classical instrument emulation will also appreciate the harmonic precision.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code provided in the box to open the AI companion, which gives step-by-step guidance specific to this additive synthesis organ. You can also reach our support team over WhatsApp for troubleshooting.
Can I connect a MIDI keyboard to play polyphonically?
Yes. The Arduino Due’s hardware UART can read MIDI notes with a small external circuit (not supplied). The AI companion’s example code includes a MIDI parsing routine that maps incoming notes to the drawbar-mixed partials.
How does the Arduino Due handle 16 partials in real time without dropouts?
The Due’s 84 MHz Cortex‑M3 DMA-driven output to the MCP4728 DAC, combined with optimized interrupt service routines, maintains a 44.1 kHz update rate per audio channel, ensuring glitch‑free audio even with all partials active.
What other sounds can I make beyond organ tones?
By varying the drawbar levels and mixing even and odd harmonics, you can synthesize string ensembles, brass swells, and woodwind timbres. The open‑architecture firmware lets you replace the sine wavetables with custom waveforms for FM‑like or spectral morphing effects.
16 partial sine waves summed in real time on Arduino Due to form organ pipe timbres with harmonic drawbar control.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
