AI Robotic Arm Pick and Place
AI Robotic Arm Pick & Place Kit – Harness Computer Vision and Arduino for Automated Sorting
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This kit turns your workbench into an automated sort-and-place station. You’ll build a 4-DOF robotic arm that sees objects through a camera, calculates precise positions with OpenCV, and moves using servo motors driven by inverse kinematics. Ideal for final-year engineering projects, hackathon prototypes, or serious robotics portfolios.
What You'll Build
An AI-driven pick-and-place system that identifies and sorts objects by color or shape. The arm scans a workspace, detects items via a camera module, computes the optimal joint angles using IK, and executes smooth movements to relocate them—all without manual intervention. Perfect for demonstrating Industry 4.0 automation concepts.
What You'll Learn
- Calibrate a camera and process live feed with OpenCV on a Linux MPU
- Implement inverse kinematics for a 4-DOF servo arm
- Control multiple servos via PCA9685 and Arduino Uno
- Debug real-time vision-to-motion pipelines

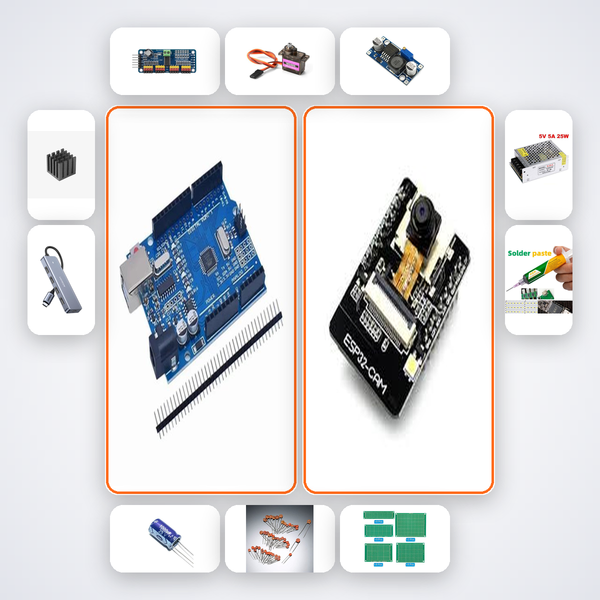

Kit Contents
| Component | Quantity |
|---|---|
| Arduino UNO Q | x1 |
| OV2640 Camera Module | x1 |
| PCA9685 Servo Driver | x1 |
| MG90S Servo | x4 |
| LM2596 Buck Converter | x1 |
| 1000µF 25V Caps | x3 |
| 100nF Caps | x10 |
| PCB Prototype Board | x3 |
| Aluminium Servo Brackets | x8 |
| USB-C Hub | x1 |
| 5V 5A PSU | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE, EEE, and CS students building their final-year project will find this kit aligns perfectly with robotics and computer vision modules. Smart India Hackathon participants can prototype an automated sorting line in hours. Makers from IITs, NITs, VIT, BITS, and ATL Tinkering Labs looking to demonstrate advanced AI+mechatronics concepts will have a ready platform.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Our AI build assistant, accessed via QR code, walks you through every wiring and coding step. Not working? Message us on WhatsApp for engineer support within hours.
Does the kit include a Linux board for OpenCV?
The kit provides the OV2640 camera and all electronics to interface with any Linux-capable board (Raspberry Pi 4/5 recommended). The Linux MPU is not included, but full setup scripts are provided for common boards.
Can I use this for a college project or competition?
Absolutely. The kit is designed for final-year B.Tech projects, Smart India Hackathon, and technical paper presentations. We include documentation that maps to common curriculum requirements.
What soldering skills are needed?
You'll need to solder header pins and components onto PCB prototype boards. This kit is advanced, so prior soldering experience is expected. A basic soldering iron and solder wire are included.
OpenCV object detection on Linux MPU computes IK target. STM32 drives 4-DOF servo arm via PCA9685.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
