Anemometer Kit with Arduino Nano + Hall Effect
Measure Wind Speed with Arduino Uno: DIY Anemometer Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform a handful of electronics into a real-time wind speed instrument. Whether you are tracking breeze patterns for a school weather station or prototyping a smart agriculture sensor node, this anemometer translates spinning cups into precise km/h readings on a crisp LCD display. No guesswork—just data you can log, graph, and act on.
What You'll Build
A working cup anemometer that counts rotations with a Hall effect sensor, processes the signals with an Arduino Uno, and displays instantaneous wind speed in kilometers per hour. It is a complete, portable weather tool you can mount outdoors or integrate into larger data-logging projects. The I2C LCD keeps wiring simple, and the breadboard layout gives you full insight into every connection.
What You'll Learn
- Interface a Hall effect sensor to detect magnetic field changes without physical contact.
- Write Arduino code to convert sensor pulses into wind speed using rotational physics.
- Display real-time data on a 16x2 LCD via I2C, simplifying wiring and code.
- Troubleshoot sensor noise with pull-up resistors and bypass capacitors for stable readings.
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| A3144 Hall Effect Sensor | 1 |
| 16x2 LCD | 1 |
| I2C Backpack | 1 |
| 10kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 3D-print or DIY Cup Anemometer | 1 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for CBSE Class 11–12 students working on physics investigatory projects, B.Tech ECE and EEE undergraduates experimenting with sensor-based systems, and ATL Tinkering Lab mentors guiding Smart India Hackathon prototypes. If you need a reliable wind speed measurement module for an IoT weather station, this kit gives you a solid foundation without the frustration of parts sourcing.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What is the minimum wind speed this anemometer can detect?
The Hall effect sensor with a small magnet on the cup axle can detect rotations from very light breezes (around 0.5 m/s). Calibration depends on cup size and arm length; the sample code includes tunable factors.
Can I power it outdoors for long-term monitoring?
Yes, you can replace the 9V battery with a 5V solar-charged power bank connected to the Arduino’s USB port. Mount the electronics in a rainproof enclosure for permanent outdoor use.
Is soldering required?
No soldering. The kit uses a breadboard and jumper wires, so you can prototype and modify connections quickly. The I2C backpack simplifies LCD wiring to just four pins.
How do I get help if my LCD shows garbled text?
Scan the QR code on the box to chat with our AI companion; it is trained on this exact build. You can also reach us on WhatsApp for personalized guidance within 24 hours.
Hall effect sensor on a cup anemometer counts rotations to calculate and display wind speed in km/h.

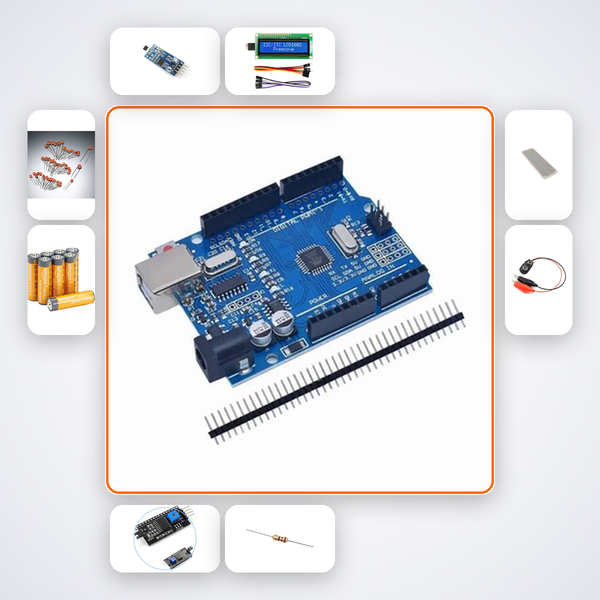

What's in this kit
- Arduino Uno R3
- A3144 Hall Effect Sensor
- 16x2 LCD
- I2C Backpack
- 10kΩ Resistors x5
- 100nF Caps x5
- 3D-print or DIY Cup Anemometer
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
