Automated Bird Feeder Opener Kit with Arduino Uno + Servo
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Automated Bird Feeder Opener Kit: Arduino Uno, PIR, Servo — an intermediate-level kit.
Automated Bird Feeder Opener Kit: Arduino Uno, PIR, Servo
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: An automated bird feeder: a PIR by the perch tells an Arduino Uno a bird has landed, an SG90 servo opens the feeder lid for a set time, and the OLED counts visits with the time from a DS3231 clock.

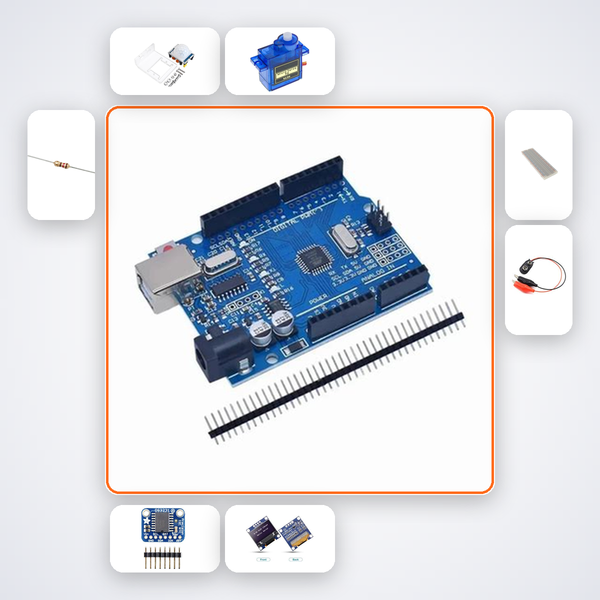

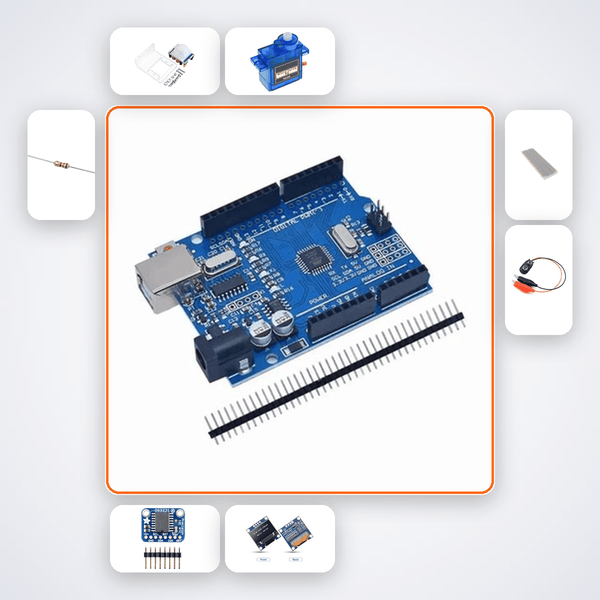

What's in the box
- Arduino Uno R3
- HC-SR501 PIR
- SG90 Servo
- DS3231 RTC
- 0.96in OLED
- 10kΩ Resistors × 5
- 400-pt Breadboard
- M-M Wires × 20
- 9V Battery Snap
Power: 9V battery, not included. The feeder is not included.
Skill level: Beginner (3-4 hours, no soldering).
Frequently asked questions
Will a PIR see small birds?
Close up it usually can; very small birds may be missed.
Is it weatherproof?
No. Shelter the electronics.
Imagine a bird feeder that never spills grain into the rain, never goes stale, and only opens when a sparrow, bulbul, or sunbird actually lands on the perch. This kit lets you build exactly that—an Arduino-powered automatic opener that uses a PIR motion sensor to detect a bird, triggers a servo to swing the lid open for a set time, and counts every visit on an OLED display. It’s home automation that turns your balcony or garden into a responsible feeding station, perfect for Indian urban birdlife.
What You'll Build
You’ll assemble a compact control unit on a breadboard where the HC-SR501 PIR watches for thermal movement near the perch. When a bird lands, the Arduino Uno commands the SG90 servo to rotate the lid open. The DS3231 real-time clock lets you restrict feeding to fixed hours—say, dawn and dusk—so you don’t attract midnight scavengers. A 0.96-inch OLED keeps a running count of visitors, making it a data-driven wildlife project you can take to a CBSE science exhibition or a college mini-project review.
What You'll Learn
- Calibrating a PIR sensor’s sensitivity and trigger modes for outdoor detection
- Controlling servo rotation angles precisely with Arduino PWM signals
- Communicating over I2C to read an RTC and drive an OLED display
- Writing Arduino code that combines timers, interrupts, and a simple state machine
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| HC-SR501 PIR | 1 |
| SG90 Servo | 1 |
| DS3231 RTC | 1 |
| 0.96in OLED | 1 |
| 10kΩ Resistors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
Who This Kit Is For
Designed for CBSE students tackling physics or electronics projects, B.Tech ECE/EEE first-years searching for a ready-made mini-project, and ATL Tinkering Lab innovators merging biology with automation. Bird lovers across India—from apartment balconies to farmhouse gardens—will appreciate a feeder that only serves food when a visitor arrives, reducing waste and keeping grain fresh.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI companion offers step-by-step troubleshooting, and you can send a photo via WhatsApp—our team responds.
Can I set the feeder to work only at certain hours?
Absolutely. The DS3231 RTC lets you program a feeding window; outside that window the PIR is ignored, so the lid stays shut.
Do I need to solder anything?
No soldering required. Every component plugs into the breadboard with male-to-male jumper wires, making assembly clean and reusable.
Will this work outdoors?
The kit is intended for prototyping. To use it in a garden, place the electronics in a weatherproof enclosure (not included) to protect from moisture and dust.
PIR detects bird at perch and servo opens feeder lid for timed duration. Counter on OLED.
What's in this kit
Do you deliver across India?
Yes. We ship Automated Bird Feeder Opener Kit: Arduino Uno, PIR, Servo across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Orders ship in 3-7 days.
What payment options are available for Automated Bird Feeder Opener Kit: Arduino Uno, PIR, Servo?
We accept UPI, all major debit and credit cards, and Cash on Delivery (COD) available.
Built and shipped from Compoden, with UPI and cards, plus COD available.
