Automatic Window Louver Kit: Arduino Uno, BH1750, 4 Servos
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Automatic Window Louver Kit: Arduino Uno, BH1750, 4 Servos — an advanced-level kit.
Automatic Window Louver Kit: Arduino Uno, BH1750, 4 Servos
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: Automatic window louvers: a BH1750 light sensor and a DS3231 clock tell an Arduino Uno when it's day or night, and four SG90 servos tilt small louvers open in the morning and closed at dusk, with a DHT22 showing the room climate on an OLED.
What's in the box

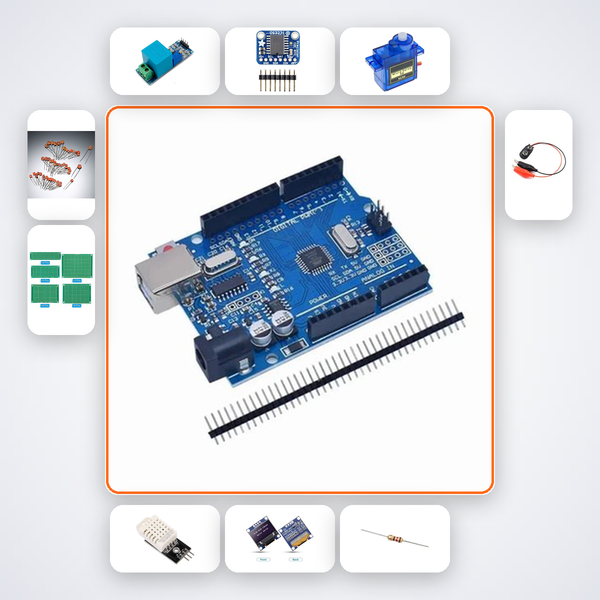

- Arduino Uno R3
- BH1750 Lux Sensor
- DS3231 RTC
- SG90 Servo × 4
- DHT22
- 0.96in OLED
- 10kΩ Resistors × 5
- 4.7kΩ Resistors × 5
- 100nF Caps × 10
- PCB Prototype Board × 2
- M-M Wires × 25
- 9V Battery Snap
Power: 9V battery, not included. Four servos need a 5V supply of a few amps; a 9V battery won't run them.
Skill level: Intermediate (5-6 hours).
Frequently asked questions
Can SG90s move real blinds?
Only small, light louvers; full blinds need stronger motors.
Can I set the times?
Yes, in code.
With this kit, you’ll build a four‑panel motorised louver system that automatically opens at sunrise and closes at sunset—hands‑free climate control for the nursery.
What You'll Build
You’ll assemble a weather screen driven by an Arduino Uno, where a BH1750 lux sensor reads ambient light and a DS3231 RTC supplies drift‑free time. Four SG90 micro servos rotate the louvers, while a DHT22 temperature/humidity probe and an OLED display create a dashboard of nursery conditions. The result is a self‑operating unit that tracks natural daylight, keeps the room cool, and prevents over‑ventilation after sunset—no app required.
What You'll Learn
- Interfacing a BH1750 I2C lux sensor and translating ambient light readings into servo angles
- RTC‑based scheduling: using DS3231 with Arduino to trigger events at precise times without drift
- Controlling multiple SG90 servos in sync to motorise physical louvers
- Integrating a DHT22 temperature/humidity sensor with an OLED display for environmental monitoring
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| BH1750 Lux Sensor | 1 |
| DS3231 RTC | 1 |
| SG90 Servo | 4 |
| DHT22 | 1 |
| 0.96in OLED | 1 |
| 10kΩ Resistors | 5 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 10 |
| PCB Prototype Board | 2 |
| M-M Wires | 25 |
| 9V Battery Snap | 1 |
Who This Kit Is For
This advanced kit is built for B.Tech ECE/EEE students working on IoT/embedded systems projects, participants in the Smart India Hackathon developing smart nursery solutions, and makers from IIT/NIT/VIT who want a hands‑on mechatronics build. ATL tinkering lab mentors will also find it a powerful demonstration of sensor‑actuator integration for higher‑secondary students.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to chat with the AI build companion, or message us on WhatsApp for human support from our Bengaluru team.
Will the louvers still work on cloudy mornings?
The BH1750 measures exact lux, so you define a threshold. If light stays below that value, the louvers remain shut. The RTC acts as a backup clock to prevent the system from opening too early or staying open past sunset.
What if a servo jams? Is there a safety feature?
The SG90 servos include internal stall‑current protection, and our sample code adds a soft‑stop limit to avoid over‑rotation. The included PCB prototype boards also make mechanical mounting more secure.
