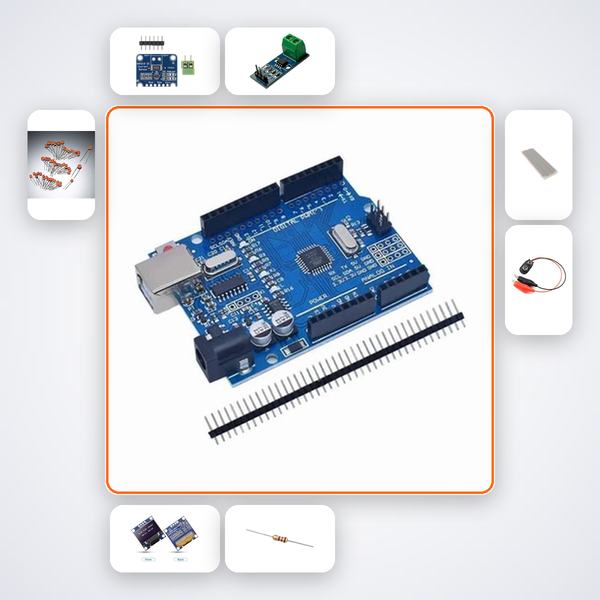

Bidirectional Power Flow Meter Kit with Arduino Uno & OLED

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Every modern energy setup—from rooftop solar to battery backup—must track power direction. This kit shows you exactly how. You’ll assemble a bidirectional power flow meter with an Arduino Uno, INA219 sensor, and a crisp 0.96-inch OLED. Within hours, you’ll be reading import (grid to load), export (load to grid), and net power—clearly labeled and updated in real time.

What You'll Build

A self-contained meter that measures current flowing in both directions through a low-value shunt. The INA219 captures voltage and current with 1% accuracy; the Arduino computes instantaneous power and determines whether energy is being imported or exported. The OLED screen displays “Import,” “Export,” and “Net Power” with a directional arrow, giving you a professional-grade power analyzer suitable for solar micro-grids, EV charging experiments, or smart home energy monitors.

What You'll Learn

• Integrate INA219 and ACS712 current sensors with Arduino for bidirectional current sensing
• Calculate real-time power (Watts) and net energy flow direction from sensor data
• Program a 0.96-inch OLED to display dynamic values with clear import/export labels
• Build a breadboard-based energy meter that can be extended to solar, wind, or battery storage projects

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This beginner-level energy monitoring kit is designed for CBSE Class 11–12 students exploring electrical power measurement, B.Tech first-year ECE/EEE lab assignments, and ATL Tinkering Lab innovators. It’s also a ready-made hardware base for Smart India Hackathon teams working on energy management or smart grid prototypes. The step-by-step AI companion makes it accessible even if you’ve never touched an Arduino before.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We’ve spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
