TensorFlow Lite Face Recognition Door Lock Kit with ESP32-CAM + 5V Solenoid Lock
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
TensorFlow Lite Face Recognition Door Lock Kit with ESP32-CAM + 5V Solenoid Lock — an expert-level kit.
Build Your Own Face-Recognizing Door Lock with ESP32 and TensorFlow Lite
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: An on-device face recognition project: an ESP32-CAM learns a few enrolled faces and, when it recognises one, a relay releases a 5V solenoid lock. Every match is logged with DS3231 timestamps, and nothing has to leave the board, which makes it a hands-on way to learn how embedded AI recognises people.

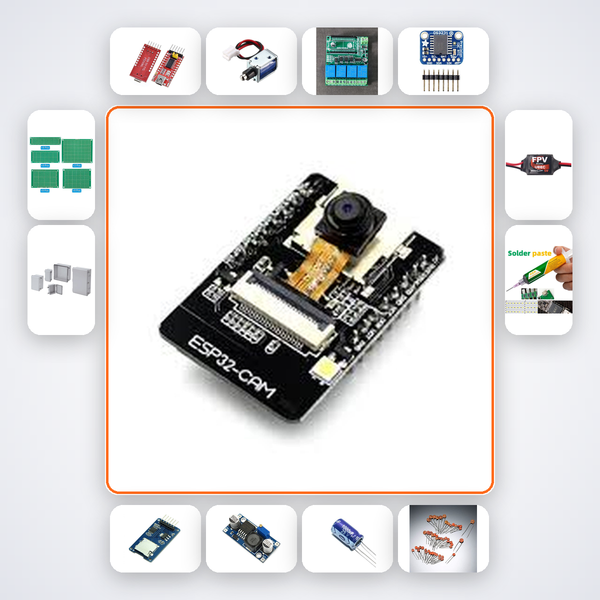

What's in the box
- ESP32-CAM
- FTDI Programmer
- 5V Solenoid Lock
- 5V Relay Module
- DS3231 RTC
- MicroSD Module
- LM2596 Buck Converter
- 1000µF 25V Caps × 2
- 100nF Caps × 10
- PCB Prototype Board × 2
- Enclosure Box
- 5V 3A PSU
- Soldering Iron
- Solder Wire
Power: the 5V supply. No batteries needed. A microSD card is not included.
Skill level: Advanced (15-20 hours).
Frequently asked questions
What's the difference between detection and recognition?
Detection finds any face, while recognition decides whose face it is.
Does it send images online?
No. Recognition runs on the ESP32-CAM itself.
Is it secure enough for a door?
No. Treat it as a learning prototype, since a photo can fool simple systems.
Imagine a door that unlocks only when it sees a trusted face — no keys, no cards, no passwords. This kit lets you build a standalone facial recognition access point using an ESP32-CAM module and TensorFlow Lite machine learning. You’ll train and deploy a face identification model, wire a solenoid lock driver, and add timestamped access logs, creating a prototype ready for real-world security experimentation in labs, offices, or research facilities.
What You'll Build
A complete door lock system that captures live video, runs on-device face recognition, and actuates a 5V solenoid via a relay when an enrolled face is detected. The DS3231 real-time clock stamps every access event, which can be stored on a microSD card for auditing. The circuit is designed on a prototype board and housed in a robust enclosure, giving you a deployable demonstration unit.
What You'll Learn
- Train and optimize a TensorFlow Lite face recognition model for the ESP32-CAM’s limited resources
- Interface an RTC module to create an event-logging access control system
- Design a stable power stage using a buck converter and bulk decoupling for noise-free camera operation
- Solder and assemble the full circuit on a prototype PCB, addressing EMI and mechanical stress
Kit Contents
| Component | Quantity |
|---|---|
| ESP32-CAM | 1 |
| FTDI Programmer | 1 |
| 5V Solenoid Lock | 1 |
| 5V Relay Module | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| LM2596 Buck Converter | 1 |
| 1000µF 25V Caps | 2 |
| 100nF Caps | 10 |
| PCB Prototype Board | 2 |
| Enclosure Box | 1 |
| 5V 3A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Who This Kit Is For
Engineers and researchers building edge AI security proof‑of‑concepts, B.Tech and M.Tech students in ECE or CSE exploring computer vision applications, and advanced hobbyists who want a reliable facial recognition door lock testbed. Also fits Smart India Hackathon teams developing access control prototypes and faculty looking for a ready‑to‑demonstrate lab exercise.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI companion, reachable by QR code or WhatsApp, provides wiring guidance and software debugging specific to this facial recognition door lock — from resolving I2C conflicts to flashing the ESP32-CAM firmware.
Can I add multiple authorized faces?
Yes, the included SD card stores the model; you can train on several faces during enrollment and expand the dataset following the companion’s instructions.
Is this system secure against photo spoofing?
The kit includes notes on basic liveness checks (blink or movement inputs) but for production‑grade security you will need to implement additional anti‑spoofing layers beyond the scope of this project.
How long will the solenoid lock last?
The 5V solenoid is rated for thousands of cycles. We verify each unit before packing and our 7‑day replacement policy covers any manufacturing defects.
ESP32-CAM + TensorFlow Lite face ID model unlocks solenoid after recognising enrolled face.
