Laser Tripwire Kit with Arduino Uno + LDR
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Laser Tripwire Kit with Arduino Uno + LDR — a beginner-level build.
Build a Laser Beam-Break Detector with Arduino Uno, a Laser Module and an LDR Sensor
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
A red laser module shines across a gap onto an LDR sensor module. When something breaks the beam, the Arduino Uno notices the drop in light, sounds the buzzer and lights an LED. It is a classic light-sensing project, a learning build and not a security system.
What You'll Build
You aim the 650 nm laser module at the LDR sensor module across a doorway, a shelf or a track, and wire both, plus the active buzzer and an LED with its resistor, to the Arduino Uno on the breadboard. The sketch watches the LDR module's output, counts each break with a time stamp in the Serial Monitor, and sounds a short beep.
What You'll Learn
- Detecting a beam break with an LDR sensor module
- Setting the module's threshold with its trimmer
- Counting events with time stamps
- Driving a buzzer and an LED from Arduino pins
Who This Kit Is For
Beginners who like quick, satisfying builds, and makers who want to time a toy car on a track or count things passing a point.
Is the laser safe?
It is a low-power module, but never look into the beam or point it at anyone's eyes.
Can I use it to protect my home?
No. It is a learning project, not a security system.
Why does sunlight upset it?
Bright ambient light can swamp the LDR. Shade the sensor or adjust the threshold trimmer.
Arduino Uno beam-break detector: a laser shines on an LDR module, and breaking the beam beeps the buzzer and counts the event.

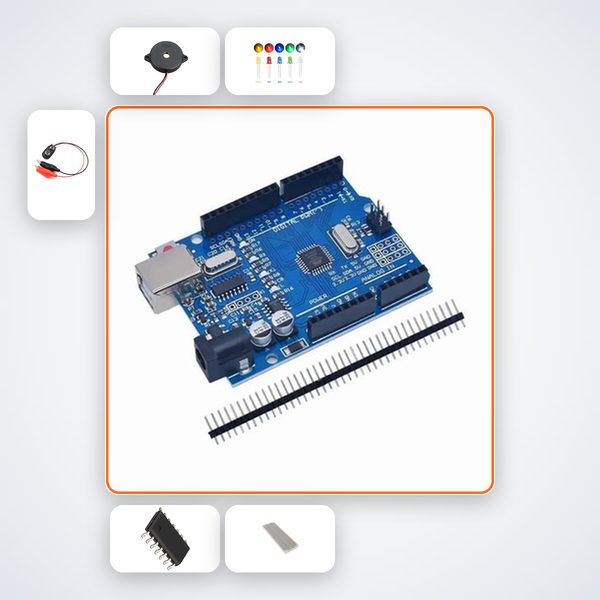

What's in this kit
- Arduino Uno R3 CH340G
- 650nm 5V Red Laser Diode Module
- LDR Sensor Module with LM393
- Active Buzzer Module 3-5V 85dB
- 5mm LED Assorted Pack (Red, Green, Blue, Yellow, White)
- Resistor Variety Pack - 10 Values, 1/4W Carbon Film
- 400-point solderless breadboard
- Dupont Jumper Wire Kit (M-M, M-F, F-F, 20cm, 22AWG)
