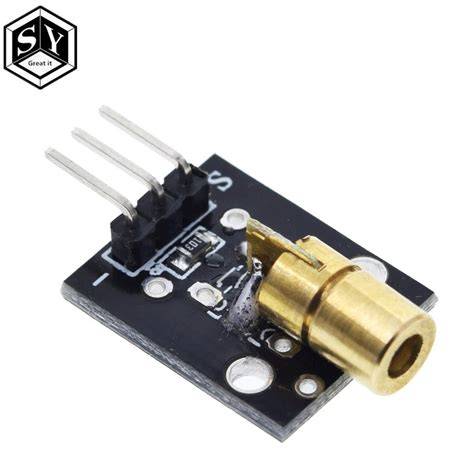

Laser Sensor Module 650nm 5V Red Dot Diode for Arduino DIY
Laser Sensor Module 650nm 5V – Red Dot Laser Diode for Electronics Projects
This 650nm laser sensor module operates at 5V DC, emitting a bright red laser dot suitable for alignment, security tripwires, and DIY electronics. Ideal for makers and hobbyists using Arduino or similar microcontrollers. The compact module includes a built-in driver circuit for stable output.
Key Specifications
| Specification | Value |
|---|---|
| Wavelength | 650 nm (red) |
| Operating Voltage | 5V DC |
| Operating Current | <40 mA |
| Output Power | <5 mW |
| Beam Type | Dot (focused) |
| Dimensions | ~20 x 10 mm |
What You Can Build With This
- Laser tripwire security system
- Laser-based distance sensor (with LDR/photodiode)
- DIY laser light show or pattern generator
- Line-following robot or alignment tool
Compatibility
This module works with any 5V system, including Arduino Uno, Nano, ESP8266, and Raspberry Pi (with 5V pin). Simply connect VCC to 5V, GND to ground, and signal pin (if any) to a digital I/O. No additional components required for basic operation.
Wiring Notes
Connect red wire to 5V, black to GND. For modules with a third wire (enable/signal), connect to a digital pin and set HIGH to turn on the laser. Do not exceed 5V; a current-limiting resistor is built in. Avoid direct eye exposure.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, it works directly with any Arduino board. Connect VCC to 5V, GND to GND, and the signal wire (if present) to any digital pin to control the laser.
Can I use this for a laser-based communication system?
Yes, by modulating the power pin rapidly, you can transmit data wirelessly over short distances, but ensure you use a proper driver circuit for high-speed modulation.
Does this module include a receiver?
No, this module is only a transmitter (laser diode). To detect the laser, you will need a separate light sensor like an LDR or photodiode.
