Laser Projector Lissajous Engine Variant 6 Kit with Arduino Mega
Create Intricate Lissajous Laser Projections with the Arduino Mega-Powered Engine Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform a blank wall into a canvas of swirling geometric light. This kit pairs two galvanometer mirrors driven by high-resolution stepper motors to sweep a green laser beam at smooth, high speeds, painting mesmerizing Lissajous figures and animated patterns. Every component is pre-verified for system‑wide compatibility so you can focus on the art of precision motion.
What You'll Build
You'll assemble and calibrate a dual‑axis galvo mirror assembly housed in a safety enclosure. Once powered up, the Arduino Mega processes real‑time inertial feedback from the MPU6050 to keep the beam steady, allowing you to project complex, drifting Lissajous spirals, rose curves, and custom parametric designs onto any surface.
What You'll Learn
- Coordinating two NEMA 17 stepper motors with A4988 microstepping drivers for fluid, high‑frequency sweeps
- Implementing a closed‑loop system using an MPU6050 inertial sensor to correct drift and vibration
- Coding Lissajous curve generation on the Arduino Mega with real‑time frequency and amplitude adjustments
- Safe handling and enclosure design for a 5mW green laser module in continuous display applications

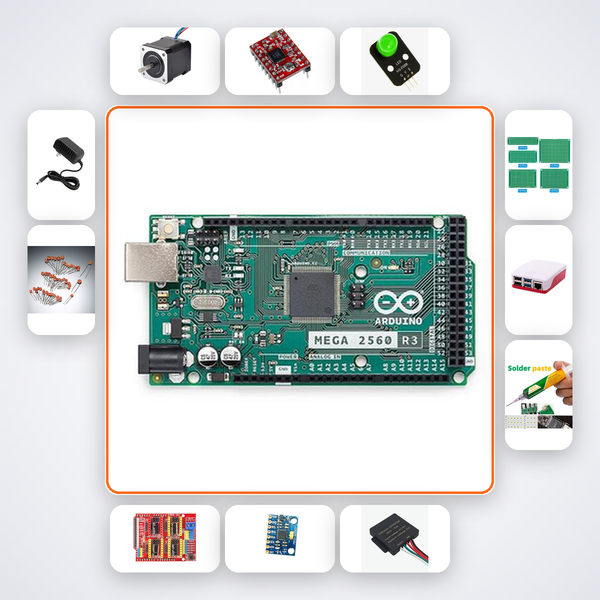

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| NEMA 17 Stepper | 2 |
| A4988 Driver | 2 |
| 5mW Green Laser Module | 1 |
| CNC Shield V3 | 1 |
| MPU6050 | 1 |
| Galvo Mirror Set | 2 |
| 12V 3A PSU | 1 |
| 100nF Caps | 10 |
| PCB Prototype Board | 2 |
| Safety Enclosure | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Geared toward college‑level engineering students (B.Tech ECE/EEE) working on advanced mechatronics projects, Smart India Hackathon participants creating interactive art installations, and professionals in makerspaces across IITs, NITs, VIT, and BITS Pilani. The build demands prior soldering and Arduino programming experience, making it ideal for those who want to push their precision motion‑control and laser optics skills.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to chat with your AI build companion trained on this project, or WhatsApp us directly for step-by-step help.
Can I create my own Lissajous patterns beyond the included code?
Absolutely. The Arduino Mega sketch is fully open-source, and you can modify frequency, amplitude, and phase parameters to generate any Lissajous curve or explore chaotic attractors.
How do I ensure the laser is safe for audiences?
The kit includes a mountable safety enclosure that prevents direct beam exposure. Always operate the projector indoors, pointed at a wall or screen, and never look directly into the laser aperture.
Can I upgrade the stepper motors for faster sweeps?
The CNC Shield supports up to 2A per motor; you can swap in higher-torque NEMA 17s while staying within the PSU's capacity, allowing broader patterns at higher speeds.
Two galvo mirrors on stepper motors draw Lissajous figures with a laser pointer at high sweep rates.
What's in this kit
- Arduino Mega 2560
- NEMA 17 Stepper x2
- A4988 Driver x2
- 5mW Green Laser Module
- CNC Shield V3
- MPU6050
- Galvo Mirror Set x2
- 12V 3A PSU
- 100nF Caps x10
- PCB Prototype Board x2
- Safety Enclosure
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
