LED Ceiling Star Map Kit with ESP32 + WS2812B 5m Strip

SKU: CDN-KIT-0968-SLD Brand: Compoden Category: Electronics > Display & Art > Project Kits
Rs. 4,440.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

LED Ceiling Star Map Kit with ESP32 + WS2812B 5m Strip — an expert-level kit.

LED Ceiling Star Map Kit with ESP32 + WS2812B 5m Strip — A Personal Planetarium with ESP32–Driven Twinkle

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 10-12 hours Skill: Addressable LED animation & ESP32 programming

Kit at a glance

What you build: A ceiling star map laid out from a real star chart: the WS2812B strip is cut into single LEDs and placed at real star positions, and an ESP32 lights constellations one at a time. Three buttons step through them and a knob sets the brightness.

What's in the box

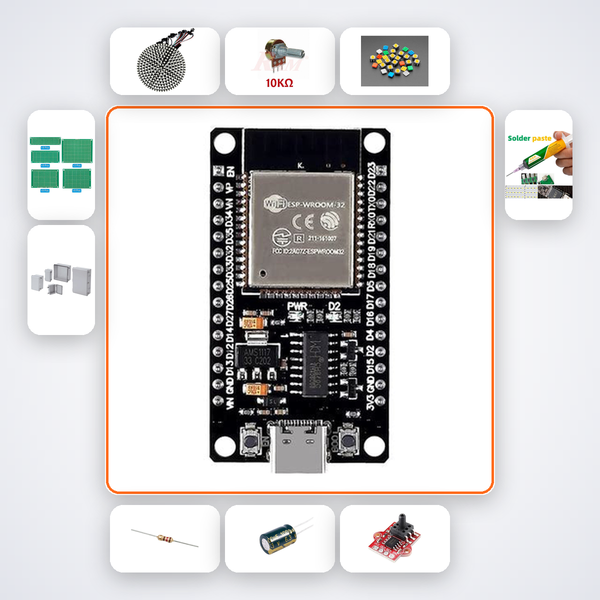

  • ESP32 Dev Board
  • WS2812B 5m Strip
  • 10kΩ Potentiometer
  • Tactile Button × 3
  • 470Ω Resistors × 5
  • 1000µF 6.3V Caps × 3
  • 5V 10A PSU
  • PCB Prototype Board × 2
  • Enclosure Box
  • Soldering Iron
  • Solder Wire

Power: the 5V supply. No batteries needed.

Skill level: Advanced (10-12 hours, lots of soldering).

Frequently asked questions

Do I cut the LED strip?

Yes. Each star is a single LED cut from the strip and wired back to the chain, so plan for a lot of soldering.

Can it show only one constellation?

Yes. Each LED is controlled on its own, so the code can light any group.

Why such a big power supply?

A full 5m strip at high brightness draws several amps.

Transform any ceiling into a living star field where each point of light twinkles independently — just like the night sky. This kit equips you to map your own star positions using WS2812B addressable LEDs and an ESP32 microcontroller that pulses brightness with organic, random-seeming variation. Whether you want to recreate a specific constellation, mimic the Milky Way, or design a personalised celestial canvas, the Variant 3 kit delivers a completely custom, immersive ambient installation.

What You'll Build

You’ll craft a distributed LED array mounted directly onto your ceiling, with every star individually addressable via a single data line. The ESP32 runs firmware that modulates each LED’s brightness in subtle, asynchronous fades — no repetitive flashing, just continuous twinkling. The result is a ceiling that breathes with light, creating a deeply relaxing or awe-inspiring atmosphere. A discrete control box houses the power supply and microcontroller, and three tactile buttons let you cycle through animation presets or adjust global brightness using the potentiometer.

What You'll Learn

  • Addressable LED protocol timing and data line management using the FastLED library on ESP32
  • Microcontroller programming for non-linear brightness curves and pseudo-random twinkle algorithms
  • Power distribution design for long 5V LED runs — capacitor placement, resistor inline protection, and 10A supply wiring
  • Through-hole soldering and prototyping on PCB boards to build a durable control module

Kit Contents

Component Quantity
ESP32 Dev Board 1
WS2812B 5m Strip 1
10kΩ Potentiometer 1
Tactile Button 3
470Ω Resistors 5
1000µF 6.3V Caps 3
5V 10A PSU 1
PCB Prototype Board 2
Enclosure Box 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This advanced kit speaks to makers who already know their way around a soldering iron and an Arduino IDE — perhaps as a step up from earlier LED projects. It’s ideal for interior design experimenters, working professionals who tinker with embedded systems, and B.Tech ECE/EEE graduates or hobbyists from India’s engineering campuses (IITs, NITs, VIT, BITS) wanting a deeply satisfying display-art build. If you’ve ever wanted a personal planetarium that responds to the rhythm of your code, this is your project.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the AI companion from your phone — it’s trained on the exact wiring, code, and troubleshooting steps for this kit. You can also drop a message on WhatsApp and a human will step in.

Can I design my own star layout or mimic a real constellation?

Absolutely. The ESP32 code is fully open and well-commented. Map LED indices to coordinates of any constellation or free-form pattern, and the AI companion can guide you through assigning star positions in the firmware array.

How do I mount the LED strip on the ceiling without permanent damage?

The strip’s 3M adhesive backing holds firmly on clean, dust-free surfaces. For rental-friendly installation, use low-tack painter’s tape or small removable clips. The controller box can sit on a shelf or be wall-mounted.

Does the kit support multiple twinkle modes or brightness settings?

Yes. The three tactile buttons let you cycle through pre-loaded animation presets (subtle, active, calm) and the potentiometer adjusts overall brightness in real time — all without re-flashing the ESP32.

WS2812B LEDs individually addressable at star positions on ceiling. ESP32 pulses brightness as twinkling.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
