Learn Dead-Reckoning Odometry: Arduino Differential Drive Robot Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

This kit gives you a practical, no-soldering way to master differential drive odometry. You'll build a 2WD robot that uses LM393 speed sensors on both wheels to track its own position, then calculates and executes a path to any XY coordinate you set. It’s the exact approach used in warehouse robots and self-driving car prototypes — miniaturized into a learning project that ships from Bengaluru.

What You'll Build

A compact differential drive robot that continuously computes its X,Y location from wheel encoder pulses and displays it on a 0.96-inch OLED. Send a target coordinate via the serial monitor, and the robot plans a turn-and-drive trajectory, adjusts motor speeds via the L298N driver, and stops when dead-reckoning calculations match the destination. You get a tangible, programmable platform that demonstrates autonomous navigation without GPS or external sensors.

What You'll Learn

• Translate LM393 encoder pulses into linear distance using wheel circumference and gear ratio
• Implement a positional dead-reckoning algorithm in Arduino C++ that fuses left- and right-wheel data
• Calibrate motor differential via PWM to compensate for mechanical asymmetry and ensure straight-line accuracy
• Display real-time telemetry (coordinates, heading, target) on an I2C OLED and debug via serial monitor

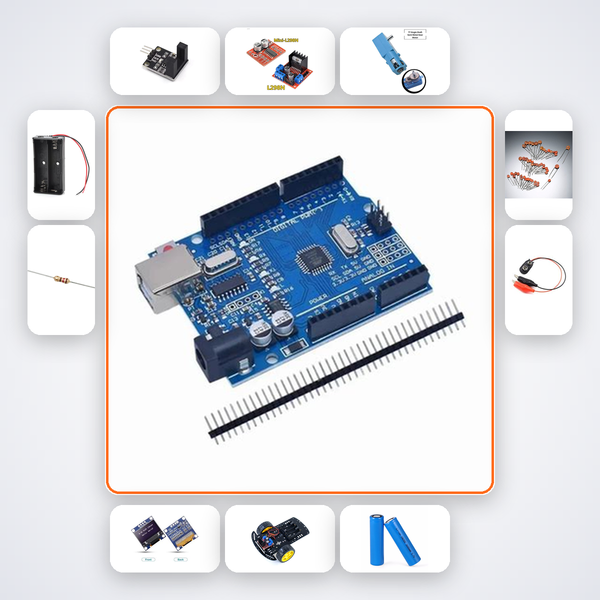

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

CBSE Class 11–12 students tackling computer science or physics investigations will find this a ready-made odometry benchmark. B.Tech ECE/EEE first-years can use it to understand encoder feedback and motor control loops. ATL Tinkering Labs and Smart India Hackathon teams gain a rapid prototyping base for autonomous navigation prototypes — all without hunting for matching sensors and chassis parts.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
