Drone GPS Navigator Kit v6
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Drone GPS Navigator Kit v6 — a beginner-level kit.
Drone GPS Navigator Kit v6 – Build a LoRa GPS Tracker for Real-Time Drone Coordinates
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Imagine watching your drone fly and tracking its exact location on a map, updated every 30 seconds—without relying on Wi-Fi or cellular networks. This kit lets you build that drone GPS tracker yourself, using long-range LoRa radio to beam live coordinates from the sky to a ground station. It is the perfect hands-on project to learn wireless sensor networks and navigation technology at home.
What You'll Build
You will assemble a lightweight GPS transmitter that reads latitude, longitude, and altitude from the NEO-6M module, then broadcasts that data wirelessly via the RA-02 LoRa module. The ground receiver—a second Arduino setup you can build with a laptop or spare board—displays the drone’s path in real time. The entire system transmits a fresh position fix every 30 seconds, giving you a live telemetry stream for your drone.
What You'll Learn
- How to parse NMEA GPS sentences from the NEO-6M module and extract location data with Arduino Nano
- Configuring the RA-02 LoRa module for 433MHz long-range transmission and setting up a point-to-point wireless link
- Building a complete drone telemetry system with timed 30‑second position broadcasts
- Powering a field-ready prototype with a LiPo battery and safely recharging it using the TP4056 charging module

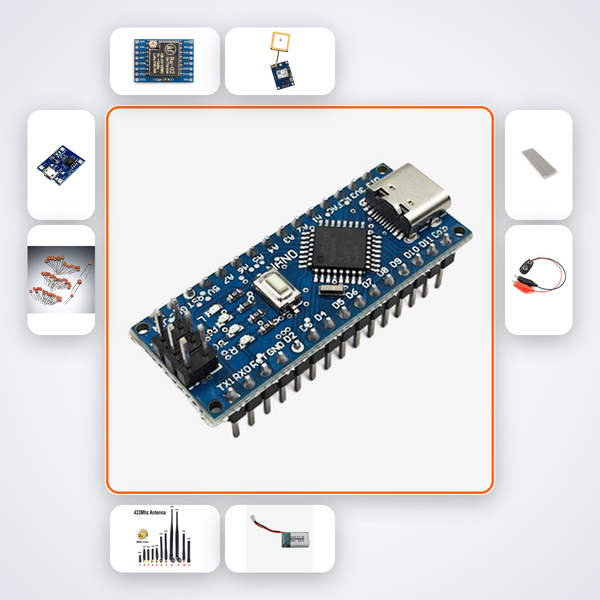

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | x1 |
| RA-02 LoRa | x1 |
| NEO-6M GPS | x1 |
| 433MHz Antenna | x1 |
| 3.7V LiPo 1000mAh | x1 |
| TP4056 Module | x1 |
| 100nF Caps | x5 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
| M-F Wires | x10 |
Who This Kit Is For
This beginner-level kit is ideal for young electronics explorers aged 14+ (with adult supervision) (with adult guidance), CBSE students working on GPS or communication projects, and ATL Tinkering Lab setups introducing LoRa wireless technology. It also suits a first drone-tracker build: all parts plug into a solderless breadboard and need no previous coding experience.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build
Drone — NEO-6M GPS coordinates transmitted over RA-02 LoRa to a gateway receiver every 30 seconds.
What's in this kit
- Arduino Nano
- RA-02 LoRa
- NEO-6M GPS
- 433MHz Antenna
- 3.7V LiPo 1000mAh
- TP4056 Module
-
100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x10
Drone — NEO-6M GPS coordinates transmitted over RA-02 LoRa to a gateway receiver every 30 seconds.
What's in this kit
- Arduino Nano
- RA-02 LoRa
- NEO-6M GPS
- 433MHz Antenna
- 3.7V LiPo 1000mAh
- TP4056 Module
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x10
