Program a 16-Step Drum Machine Sequencer with Arduino Uno – Hear Your Patterns Come Alive

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine pressing a grid of buttons and instantly hearing a custom drum pattern. This kit transforms an Arduino Uno, 16 tactile buttons, and a passive buzzer into a fully programmable step sequencer — exactly the kind of tool electronic musicians and makers use to sketch beats. Whether you're prototyping for a school project or want to understand how sequencers work in hardware, you'll build a real-time pattern player that reacts to every tap, lights up its own step grid, and lets you dial in tempo with a single potentiometer.

What You'll Build

You’ll assemble a 4x4 button matrix connected to shift registers and an Arduino, each button lighting an LED when its step is active. A passive buzzer produces a different tone on each step, creating a percussive sequence that evolves as you press buttons. A tempo pot slows or speeds the entire loop, and the whole circuit sits neatly on a breadboard — ready to demonstrate in a classroom, hackathon, or jam session.

What You'll Learn

• How shift registers (74HC595) expand Arduino outputs to control 16 LEDs and read a button grid with fewer pins.
• Writing time‑based sequencing code to step through a 16‑note pattern while reading button states.
• Generating distinct tones with `tone()` on a passive buzzer and mapping step number to frequency for percussive effects.
• Using a potentiometer as an analog control to set BPM, teaching real‑time input and interrupt‑driven timing.

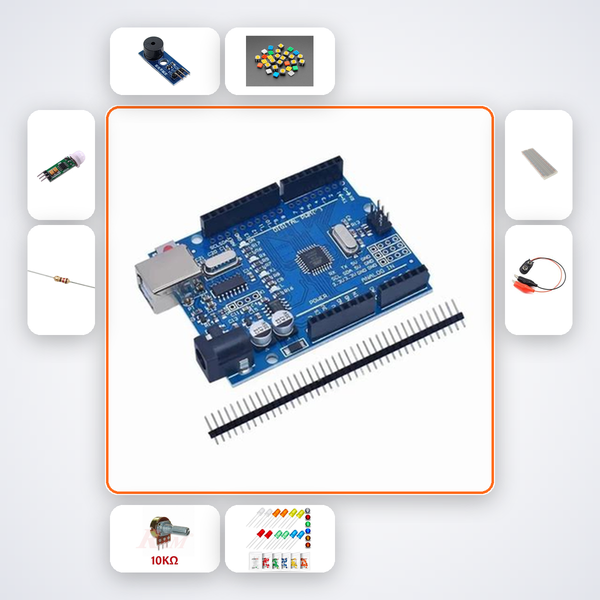

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

CBSE Class 11‑12 students designing an investigatory project on digital music or sequential logic will find this kit hits the syllabus perfectly. B.Tech ECE/EEE undergraduates can use it to demonstrate shift registers and embedded timing in practicals. ATL Tinkering Lab mentors looking for a music‑tech challenge that blends coding with hardware will love the instant gratification. And if you’re gearing up for a Smart India Hackathon prototype or just want to build your first Arduino instrument, this kit puts the entire signal chain in your hands.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
