FFT Audio Spectrum on TFT Kit with Arduino Mega
Build a 32-Band FFT Audio Spectrum Visualizer on TFT Display with Arduino Mega Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform any ambient audio into a professional-grade 32-band spectrum analyzer with beat detection, drawing a colorful bar graph on a 2.4-inch TFT screen at 25 frames per second. This kit combines an Arduino Mega with the MAX9814 auto-gain microphone amplifier and ILI9341 display—creating a standalone measurement tool that architects, engineers, and makers use for sound system tuning, voice analysis, and interactive art installations. Whether you're prototyping a digital equalizer or presenting a Smart India Hackathon concept, this pre-assembled project lets you skip component hunting and dive straight into DSP coding.
What You'll Build
A real-time audio spectrum visualizer that captures sound through the MAX9814 microphone, processes it with the ArduinoFFT library, and displays a 32-band frequency analysis on the ILI9341 TFT. Beat detection highlights bass kicks and snares dynamically, making the output ideal for music visualization, science fair demos, and engineering lab demonstrations. The final unit runs on a 9V battery and fits neatly on a breadboard.
What You'll Learn
- Implementing Fast Fourier Transform (FFT) on an 8-bit microcontroller
- Handling high-speed SPI communication for TFT displays
- Designing analog front-end circuits with MEMS microphones and auto-gain control
- Optimizing real-time DSP code for 25fps refresh rates with limited RAM

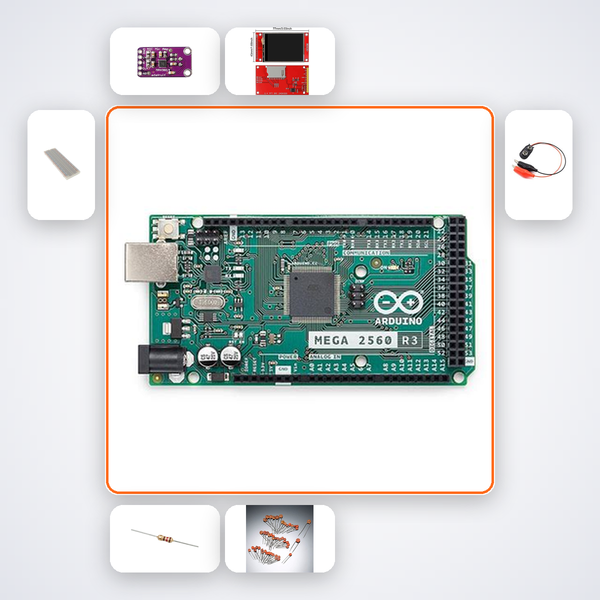

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| MAX9814 Mic Amp | 1 |
| 2.4in TFT ILI9341 | 1 |
| 10kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Engineering students pursuing B.Tech in ECE, EEE, or Instrumentation at IITs, NITs, VIT, BITS, and Anna University who need a ready-to-present DSP project for semester submissions or Smart India Hackathon. Hobbyists exploring real-time audio visualization and CBSE Class 12 students building advanced investigatory projects on sound processing will also find this kit an excellent platform to demonstrate FFT concepts.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to chat with the AI companion trained on this exact project. For additional help, WhatsApp us with your order ID and we'll walk you through the debug in real time.
Can I connect this kit to a line-in audio source instead of the microphone?
The kit uses the MAX9814 microphone with auto-gain, but you can bypass the mic and inject line-level audio through a 10kΩ resistor divider into the ADC pin—full instructions are included in the companion guide.
How accurate is the beat detection algorithm?
Beat detection runs a rolling energy threshold on the bass bands (0-300 Hz). It triggers a visual accent on the TFT when energy exceeds the dynamic threshold, achieving reliable detection for kick drums and bass drops in real time.
Is this kit suitable for a Smart India Hackathon project?
Absolutely. This kit is a ready-to-demonstrate prototype that impresses judges with its professional-looking FFT display and real-time functionality—perfect for themes like smart displays, audio processing, and IoT interfaces.
MAX9814 mic + ArduinoFFT draws 32-band spectrum on 2.4in TFT at 25fps with beat detection.
