Water Sensor Pump Controller Kit with Arduino Uno + Sensor
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Water Sensor Pump Controller Kit with Arduino Uno + Sensor — a intermediate-level build.
Build a Water-Level Pump Controller with Arduino Uno, a Relay, a Mini Pump and SIM800L SMS
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
When water reaches the sensor, the Arduino Uno switches on a small pump through a relay to move it away, and sends a text message through a SIM800L module. It is a low-voltage model of how sump and tank systems work, ideal for a bench demonstration or a small planter tray.
What You'll Build
The water level sensor connects to an analog pin. The relay module switches the 3-6 V mini submersible pump, with a diode across the pump. The 12 V adapter and the LM2596 buck converter make a supply for the SIM800L, which needs short bursts of high current, with a capacitor close to the module. The sketch runs the pump while water is detected and sends an SMS when it starts and stops.
What You'll Learn
- Reading a resistive water level sensor
- Switching a DC pump through a relay with a protection diode
- Powering a SIM800L for its current bursts
- Sending SMS messages with AT commands

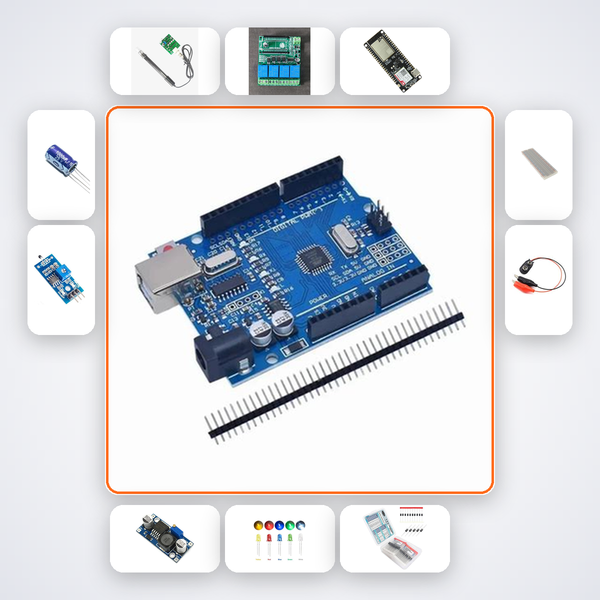

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 CH340G | x1 |
| Water Level Sensor Module (resistive trace) | x1 |
| Mini Submersible Pump 3-6V DC | x1 |
| 5V Single Channel Relay Module | x1 |
| SIM800L GSM/GPRS Module | x1 |
| LM2596 Buck Converter Module | x1 |
| 12V 2A DC Power Adapter | x1 |
| Capacitor Variety Pack – 6 Values (100nF to 470uF) | 30 Pieces | x1 |
| Diode Variety Pack (1N4007, 1N4148, 1N5819, Zener Assortment) | x1 |
| 5mm LED Assorted Pack (Red, Green, Blue, Yellow, White) | x1 |
| Resistor Variety Pack - 10 Values, 1/4W Carbon Film | x1 |
| 400-point solderless breadboard | x1 |
| Dupont Jumper Wire Kit (M-M, M-F, F-F, 20cm, 22AWG) | x1 |
Who This Kit Is For
Makers who want a practical multi-part project combining sensing, switching and messaging. Use a SIM card with SMS enabled (not included).
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
Is a SIM card included?
No. Use a 2G-compatible SIM card with SMS enabled; check that your network still supports 2G where you are.
Can this protect my home from flooding?
No. It is a low-voltage learning model, not a flood protection system.
Why does the SIM800L keep restarting?
It draws short bursts of high current. Feed it from the buck converter with short wires and the capacitor near the module.
Arduino Uno water-level pump controller: a level sensor runs a mini pump through a relay and a SIM800L sends SMS updates.
What's in this kit
- Arduino Uno R3 CH340G
- Water Level Sensor Module (resistive trace)
- Mini Submersible Pump 3-6V DC
- 5V Single Channel Relay Module
- SIM800L GSM/GPRS Module
- LM2596 Buck Converter Module
- 12V 2A DC Power Adapter
- Capacitor Variety Pack – 6 Values (100nF to 470uF) | 30 Pieces
- Diode Variety Pack (1N4007, 1N4148, 1N5819, Zener Assortment)
- 5mm LED Assorted Pack (Red, Green, Blue, Yellow, White)
- Resistor Variety Pack - 10 Values, 1/4W Carbon Film
- 400-point solderless breadboard
- Dupont Jumper Wire Kit (M-M, M-F, F-F, 20cm, 22AWG)
Do you deliver across India?
Yes. We ship Water Sensor Pump Controller Kit with Arduino Uno + Sensor across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Orders ship in 3-7 days.
What payment options are available for Water Sensor Pump Controller Kit with Arduino Uno + Sensor?
We accept UPI, all major debit and credit cards, and Cash on Delivery (COD) available.
Built and shipped from Compoden, with UPI and cards, plus COD available.
