High-Speed CNC Spindle Load Monitor
High-Speed CNC Spindle Load Monitor — Dual-Core Predictive Maintenance with ModBus SCADA Reporting
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
In modern CNC workshops, tool wear is an invisible drain on precision and production — a dull end mill or worn bearing can scrap a batch before anyone notices. This kit transforms an Arduino Portenta H7 into a high-speed spindle monitoring system that catches the earliest signatures of degradation: vibration harmonics and current anomalies. By processing ADXL345 acceleration data and ACS712 motor current at 100 kHz on the M7 core, while the M4 core polls SCADA over ModBus RTU, you'll build a true predictive maintenance appliance — rugged, DIN rail‑mounted, and ready for real factory floors.
What You'll Build
You'll assemble a complete industrial‑grade monitoring node: a Portenta H7 running frequency‑domain analysis on live spindle signals, timestamping every FFT bucket with a DS3231 RTC, logging spectra to microSD, and exposing health thresholds over RS‑485 to any ModBus master. The final unit fits in a standard DIN‑rail enclosure and directly replaces costly proprietary vibration monitors. When a tool reaches its wear limit, the system flags an alarm register — no guesswork, no surprises.
What You'll Learn
- Implement a 100 kHz Fast Fourier Transform on an ARM Cortex‑M7 to extract vibration and current harmonic signatures in real time
- Offload ModBus RTU communication to the M4 core using rpclib, preventing sensor processing jitter
- Design a physics‑based wear detection model using RMS, crest factor, and multivariate thresholding
- Integrate a timestamped data pipeline: RTC synchronisation, SD card circular buffer, and SCADA query response

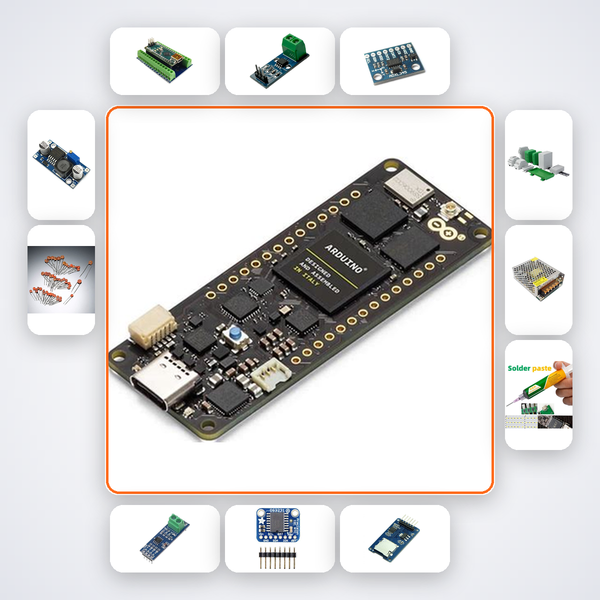

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Portenta H7 | 1 |
| Portenta Breakout Board | 1 |
| ACS712 20A | 1 |
| ADXL345 Accel | 1 |
| MAX485 RS485 | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| LM2596 Buck Converter | 1 |
| 100nF Caps | 15 |
| DIN Rail Enclosure | 1 |
| 24V 3A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Advanced B.Tech ECE/EEE students tackling industrial IoT or Smart India Hackathon challenges that demand genuine real‑time signal processing. Also fits final‑year projects at IITs, NITs, and VIT where predictive maintenance or SCADA integration is the centrepiece. ATL Tinkering Lab mentors looking to demonstrate Industry 4.0 concepts on a real dual‑core architecture will find it a capable, self‑contained demonstrator.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box for an AI companion that has seen every line of firmware and wiring diagram for this kit; it'll walk you through troubleshooting via chat. WhatsApp support is also available.
Can I connect this to my existing Siemens or Omron PLC running ModBus TCP?
Yes — the M4 core exposes ModBus RTU over RS‑485, which can be bridged to ModBus TCP using any low‑cost gateway. The register map is fully documented in the build guide.
What kind of tool wear can it actually detect?
The system correlates high‑frequency vibration energy (from ADXL345 FFT) with spindle motor current harmonics. This pattern reliably flags flank wear, built‑up edge, and bearing deterioration — often hours before visible surface finish changes.
Will I need an oscilloscope to verify the signals?
No. The breakout board and sensor conditioning are pre‑validated; the AI companion guides you through a sanity check using the Portenta’s serial plotter, eliminating the need for external test gear.
M7 runs ACS712 + ADXL345 FFT at 100kHz. M4 handles ModBus RTU reporting to SCADA. Detects tool wear.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
