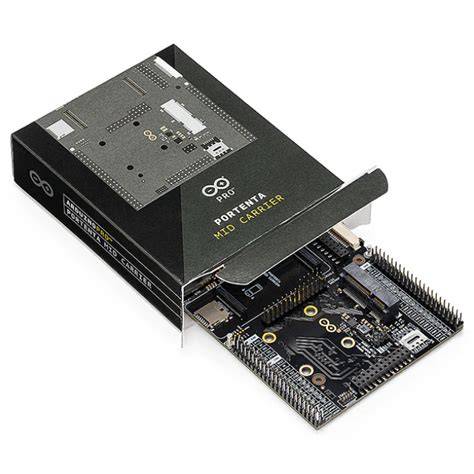

Portenta Mid Carrier | Industrial I/O Board for Arduino Portenta
Portenta Mid Carrier – Industrial I/O and Connectivity Board
The Portenta Mid Carrier is an expansion board designed for Arduino Portenta modules, adding industrial interfaces including Ethernet, CAN bus, and USB connectivity. It serves as a robust prototyping platform and a foundation for deployed IoT and automation systems. With onboard power management and extensive I/O, it streamlines development of professional-grade projects.
Key Specifications
| Specification | Value |
|---|---|
| Compatible Modules | Arduino Portenta H7, X8, C33 |
| Input Voltage | 6-36V DC |
| Ethernet | 10/100 Mbps RJ45 |
| USB | Host & Device (Micro-USB) |
| CAN Bus | CAN FD (transceiver onboard) |
| Storage | MicroSD card slot |
What You Can Build With This
- Industrial IoT gateway with Ethernet connectivity
- CAN bus data logger for automotive diagnostics
- Remote sensor hub with USB peripheral support
- Machine condition monitoring system with audio feedback
Compatibility
This carrier is compatible with all Arduino Portenta family boards, including the H7, X8, and C33. It operates with a wide input voltage range of 6-36V DC, making it suitable for industrial power supplies. Common pairings include the Portenta H7 for high-performance processing and the Vision Shield for camera applications.
Wiring Notes
Connect the Portenta board to the high-density connectors ensuring proper alignment. For CAN bus, use external termination resistors and connect to the CANH/CANL pins. The Ethernet jack is standard RJ45; use cables rated for industrial environments if deploying in harsh conditions.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Portenta H7?
Yes, it is specifically designed for the Portenta family and fits the H7 directly.
Can I use this with a 12V power supply?
Yes, the input range is 6-36V DC, so a 12V supply is ideal.
Does it include the Portenta board itself?
No, this is only the carrier board; the Portenta module must be purchased separately.
