HVAC Performance Monitor Kit — Build a Complete Embedded Monitoring System with STM32 Nucleo

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

From Smart India Hackathon prototypes to final-year B.Tech projects, a reliable embedded monitoring system separates a proof-of-concept from a professional-grade solution. This kit delivers a modular STM32 Nucleo platform with calibrated sensors, a colour TFT dashboard, and SD-card logging — the core of any environmental monitoring or HVAC performance analyser.

What You'll Build

You'll assemble a self-contained monitoring unit that samples temperature and humidity from the DHT22, barometric pressure from the BMP280, and 3-axis motion from the MPU6050. The Nucleo board orchestrates the sensors and pushes live readings to the 2.4-inch SPI TFT, while simultaneously writing timestamped data to a microSD card. When you power it up, you'll have a portable data logger that can run for days on a power bank, ready to be extended with your own algorithms.

What You'll Learn

• Configuring STM32 Nucleo F401RE with STM32CubeIDE
• Interfacing I2C and SPI sensors simultaneously without bus conflicts
• Designing a real-time TFT dashboard with sensor widgets
• Implementing a FAT file system on an SD card for structured data logging

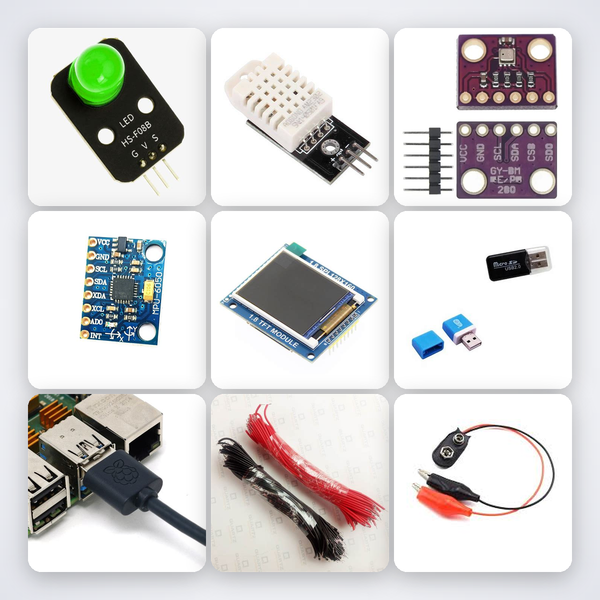

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is ideal for B.Tech ECE and EEE students working on embedded system mini-projects, Smart India Hackathon teams building HVAC performance analysers, and CBSE Class 12 students exploring microcontroller applications. ATL Tinkering Lab mentors will appreciate the pre-tested sensor integration that lets students focus on code, not hardware debugging.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
