Hydroponics EC Nutrient Monitor Kit with Arduino Uno + TDS EC Meter
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Hydroponics EC Nutrient Monitor Kit with Arduino Uno + TDS EC Meter — a beginner-level kit.
Build a Smart Hydroponics Nutrient Monitor with Arduino & OLED — Hydroponics EC Meter Variant 12 Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A nutrient strength tester: dip the TDS/EC probe in your hydroponic solution and an Arduino Uno shows the reading in PPM on a 0.96-inch OLED. Green or red LEDs show whether it's in your target range, and you calibrate it first with a solution of known strength so the numbers mean something.

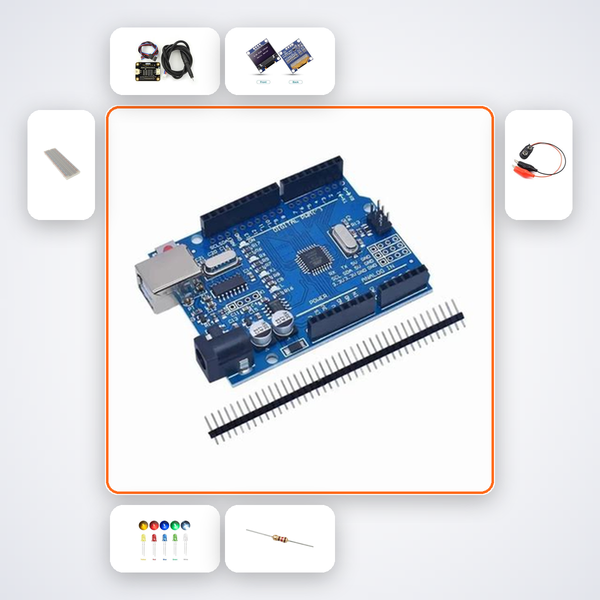

What's in the box
- Arduino Uno R3
- TDS EC Meter Module
- 0.96in OLED
- 5mm Red LED × 2
- 5mm Green LED × 2
- 10kΩ Resistors × 5
- 220Ω Resistors × 5
- 400-pt Breadboard
- M-M Wires × 20
- 9V Battery Snap
Power: 9V battery, not included.
Skill level: Beginner (2-3 hours, no soldering).
Frequently asked questions
What does PPM mean here?
Parts per million of dissolved nutrients, worked out from how well the water conducts electricity.
Why calibrate?
Probes drift, and a solution of known strength sets the reading right.
Can the probe stay in the tank?
Rinse it between readings for longer life.
Ever wondered how hydroponic farmers keep their nutrient solution perfectly balanced? With this kit, you’ll build a compact device that measures electrical conductivity (EC) and displays the total dissolved solids (TDS) in parts per million on a bright OLED screen. A red LED lights up when the concentration drifts out of the ideal range, so your plants get exactly what they need — a first step into precision agriculture.
What You'll Build
A real-time nutrient monitoring tool that reads the strength of your hydroponic solution, shows the PPM on a crisp 0.96‑inch OLED, and gives an instant visual alert with an LED when it’s time to adjust. It’s a fully functional prototype you can mount next to your home‑grown leafy greens or strawberries.
What You'll Learn
- Sensing electrical conductivity with a TDS probe and converting raw analog readings into PPM values
- Driving an I2C OLED display to show live sensor data with Arduino libraries
- Coding conditional statements that compare readings to user‑defined thresholds and switch LEDs on/off
- Calibrating the sensor using a known conductivity standard and compensating for temperature effects
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | x1 |
| TDS EC Meter Module | x1 |
| 0.96in OLED | x1 |
| 5mm Red LED | x2 |
| 5mm Green LED | x2 |
| 10kΩ Resistors | x5 |
| 220Ω Resistors | x5 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
| 9V Battery Snap | x1 |
Who This Kit Is For
This beginner‑friendly kit is built for makers in India — students dipping into STEM and CBSE co‑scholastic activities to participants in ATL Tinkering Labs across the country. It’s an ideal hands‑on project for science exhibitions, school presentation days, or any curious mind who wants to see electronics solve a real farming challenge.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to chat with the AI companion, or drop us a WhatsApp message for human help. The guide covers everything from wiring to code upload.
How do I calibrate the sensor accurately?
The AI guide walks you through a one-point calibration using distilled water (0 PPM) and a standard 1413 µS/cm solution (included suggestion), so your readings stay reliable for long-term use.
Can the device warn me when nutrients are too low?
Absolutely. By default the code turns on a red LED when PPM exceeds a safe range (set at 800–1200 PPM for leafy greens; you can easily change the threshold in the sketch).
Is this kit suitable for a complete beginner?
Yes. All components plug into a breadboard without soldering, and the step-by-step instructions with pre-written Arduino code make it a good first build.
TDS conductivity sensor shows nutrient concentration in PPM on OLED. LED turns red when out of range.
What's in this kit
- Arduino Uno R3
- TDS EC Meter Module
- 0.96in OLED
- 5mm Red LED x2
- 5mm Green LED x2
- 10kΩ Resistors x5
- 220Ω Resistors x5
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
