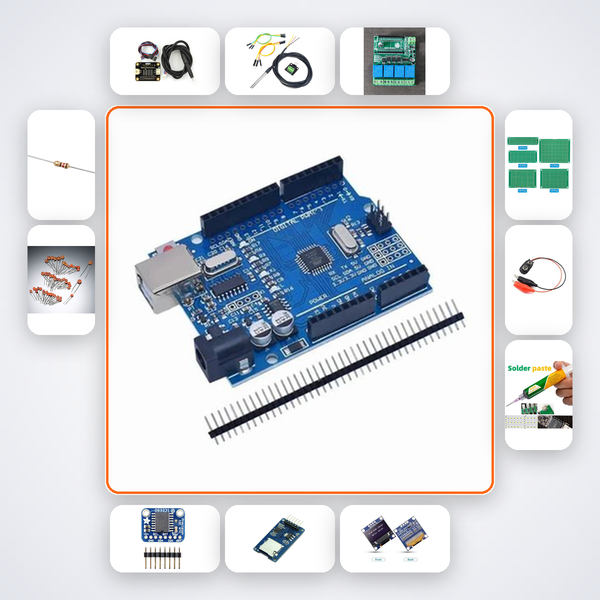

Industrial Boiler Temp Monitor Pro Kit: Simulate an Ion Diffusion Monitoring System with Arduino Uno + Relay

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Walk into any process plant and you'll see panels tracking boiler temperatures and ion concentrations. This kit lets you build that exact system on your lab bench. Using two TDS/EC meters and DS18B20 probes, you’ll monitor ion diffusion rates across a membrane under varying heat—controlled precisely by an Arduino Uno and relay. It’s a direct mapping of industrial boiler monitoring to a compact, programmable prototype.

What You'll Build

You’ll assemble a multi-channel data logger that reads TDS/EC and temperature from two separate points, triggers a heater via relay based on set thresholds, and logs every reading with a real‑time clock stamp to a microSD card. The 0.96‑inch OLED displays live metrics, just like a factory HMI. The result is a self‑contained test rig you can use for process simulation, lab reports, or engineering demonstrations.

What You'll Learn

• Calibrating TDS/EC probes for precise ion concentration measurement across a membrane
• Implementing closed‑loop temperature control with DS18B20 sensors and a 5V relay
• Integrating a DS3231 real‑time clock and microSD module for timestamped data logging
• Designing multi‑sensor embedded systems and rendering dashboards on an I2C OLED

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Designed for B.Tech ECE/EEE students taking on industrial automation and sensor fusion projects, Smart India Hackathon participants building process control prototypes, and ATL Tinkering Labs running advanced STEM programs. The kit directly maps to final‑year capstone projects at IITs, NITs, VIT, and BITS Pilani, giving you logged data and a working hardware model for viva presentations.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
