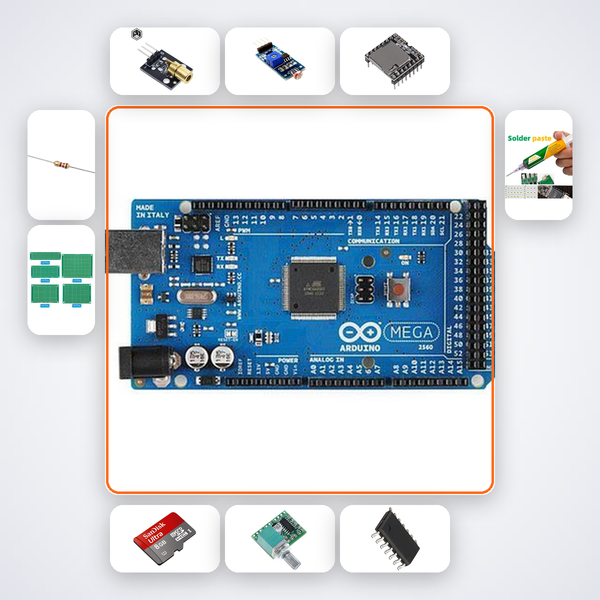

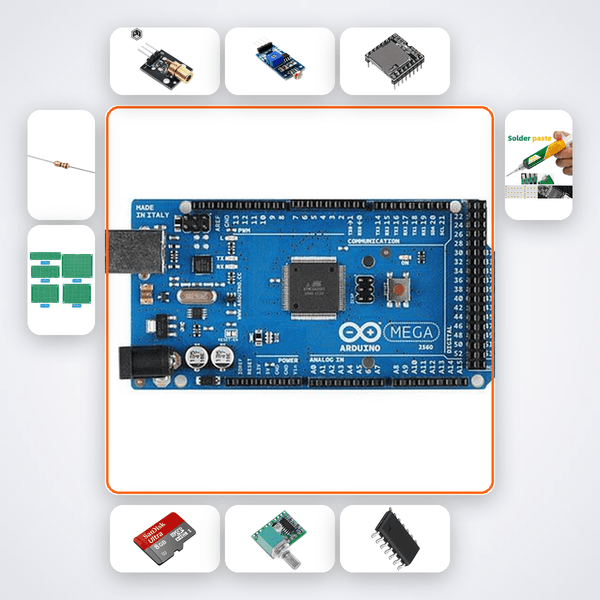

Build a 4-Beam Laser Frequency Splitter Instrument with Arduino Mega & LDR Sensors

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Transform a simple frame and laser beams into a responsive musical instrument that plays notes when your hands break the light — no strings attached, just precision electronics. This laser frequency splitter uses four red laser beams as virtual strings, each monitored by an LDR sensor, so interrupting a beam triggers a distinct sound. Designed for makers who want to explore interactive music technology, this kit merges analog comparator circuits with Arduino Mega control and MP3-based audio playback.

What You'll Build

A four-beam optical instrument that behaves like a laser harp. When your hand passes through a beam, the corresponding LDR detects the drop in light, the Arduino Mega interprets the signal, and the DFPlayer Mini plays a unique audio sample through a PAM8403 amplifier. You’ll solder the comparator boards, mount the lasers and sensors on a frame you design, and load the microSD card with your own sounds — turning hand gestures into melodies for performances, installations, or lab demonstrations.

What You'll Learn

• Design threshold-based detector circuits using LM393 comparators and LDRs to produce clean digital interrupts
• Program an Arduino Mega to read multiple sensor inputs simultaneously and trigger audio events with low latency
• Integrate a DFPlayer Mini module for real-time MP3 playback controlled via serial communication
• Solder components on prototype boards to build a reliable, permanent instrument core capable of on-stage use

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

B.Tech ECE and EEE students building final-year projects that combine embedded systems and music technology. Smart India Hackathon teams creating interactive installations for cultural tech challenges. Hobbyists from IIT, NIT, VIT, or BITS campuses who need a ready-made platform to explore laser instruments. ATL tinkering mentors guiding advanced learners toward a tangible, performance-ready prototype.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
