LoRa Wireless PIR Perimeter Alarm Kit with Arduino Nano + RA-02 LoRa
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
LoRa Wireless PIR Perimeter Alarm Kit with Arduino Nano + RA-02 LoRa — an intermediate-level kit.
Arduino LoRa Perimeter Sensor Node: Build a Wireless PIR Alarm That Triggers 500m Away
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Imagine a motion sensor at your farm’s boundary gate that silently signals your house 500 metres away when someone approaches — no Wi-Fi, no SIM, just reliable long-range radio. This kit gives you exactly the parts to assemble that system, with a trained AI companion that walks you through every connection and line of code. Whether you’re hardening a perimeter, setting up a remote livestock alert, or prototyping a security solution for a college project, you’ll move from components to a field‑ready alarm in a single afternoon.
What You'll Build
You’ll wire and programme two Arduino Nano stations: a battery‑powered PIR sensor transmitter that broadcasts an alarm packet over LoRa the instant motion is detected, and a receiver anchored at your listening post that sounds an active buzzer. The link works reliably across 500 metres of open field, exactly what you need for farm outbuildings, warehouse entrances, or campus boundaries. When the build is complete, you have a self‑contained wireless security node that can be duplicated and scaled across multiple zones.
What You'll Learn
- Configure and pair RA-02 LoRa modules for reliable point‑to‑point data links
- Integrate an HC-SR501 PIR sensor with Arduino to trigger low‑latency transmissions
- Manage power consumption of a battery‑operated sensor node that runs for days on a single 9V cell
- Design a robust alarm protocol with packet verification and error handling over the air
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 2 |
| RA-02 LoRa | 2 |
| HC-SR501 PIR | 1 |
| 433MHz Antenna | 2 |
| Active Buzzer | 1 |
| 100nF Capacitor | 10 |
| 9V Battery Snap | 2 |
| 400-pt Breadboard | 2 |
| M-M Wires | 20 |
Who This Kit Is For
This intermediate build fits perfectly into Smart India Hackathon hardware tracks, B.Tech ECE/EEE minor projects exploring long‑range wireless, and ATL Tinkering Lab sessions where mentors want a tangible security system within a day. CBSE students tapping into modern communication protocols for physics investigations will find the LoRa link a rich, real‑world demonstration. Makers from IIT, NIT, VIT, and BITS campuses who need a ready‑to‑deploy sensor node for farm, hostel, or event monitoring will save weeks of sourcing.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to open your AI companion, which knows this exact circuit and code. You can also send a photo over WhatsApp — our engineers answer.
Can this system work through walls and trees?
LoRa at 433 MHz penetrates a few brick walls and light foliage, but every obstacle reduces range. Expect the full 500 m in open ground; heavy structures may cut that to 100–200 m.
Do I need an amateur radio license to operate this?
No. The 433 MHz ISM band is license‑free in India for low‑power devices like this kit, so you can deploy it immediately.
Can I add more PIR sensor nodes to the same receiver?
Yes. With small code changes, each node can transmit a unique ID so one receiver sounds distinct alerts. The kit supplies parts for one sensor‑receiver pair, but you can expand using additional Arduino Nanos and RA‑02 modules.
Single PIR node transmits alarm over LoRa to a receiver 500m away in open field.

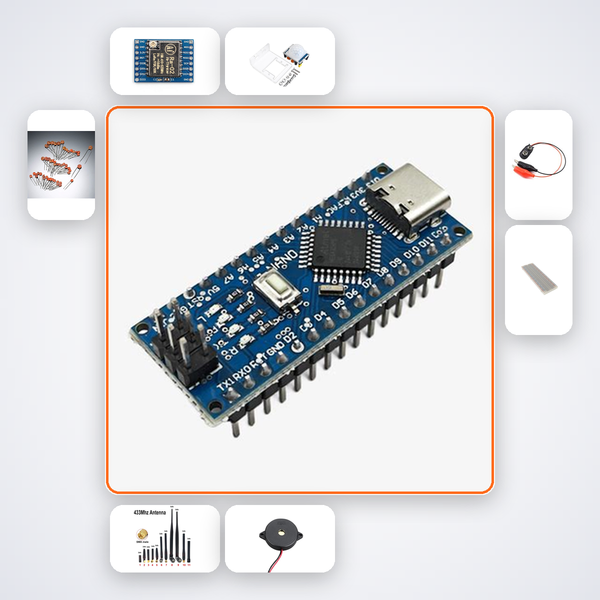

What's in this kit
- Arduino Nano x2
- RA-02 LoRa x2
- HC-SR501 PIR
- 433MHz Antenna x2
- Active Buzzer
- 100nF Caps x10
- 9V Battery Snap x2
- 400-pt Breadboard x2
- M-M Wires x20
