Magnetic Compass Heading Display Kit with Arduino Uno
Rs. 2,310.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹999
Ships in 1-5 days
7-Day Warranty on manufacturing defects
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai
Ask about this product
Magnetic Compass Heading Display Kit with Arduino Uno – Build a Real‑Time Compass Rose
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Difficulty: Intermediate
Build Time: 3-4 hrs
Age: 15-18
Skill: Magnetometer Interfacing & TFT Graphics
Transform raw magnetic field data into a beautiful, real‑time compass rose on a vibrant TFT screen. This kit guides you through wiring a QMC5883L magnetometer to an Arduino Uno and coding a live needle that points north with smooth, responsive animation—the same underlying principle used in smartphone compass apps and drone navigation systems.
What You'll Build
HMC5883L or QMC5883L magnetometer reads heading in degrees. TFT shows compass rose with live needle.
What's in this kit

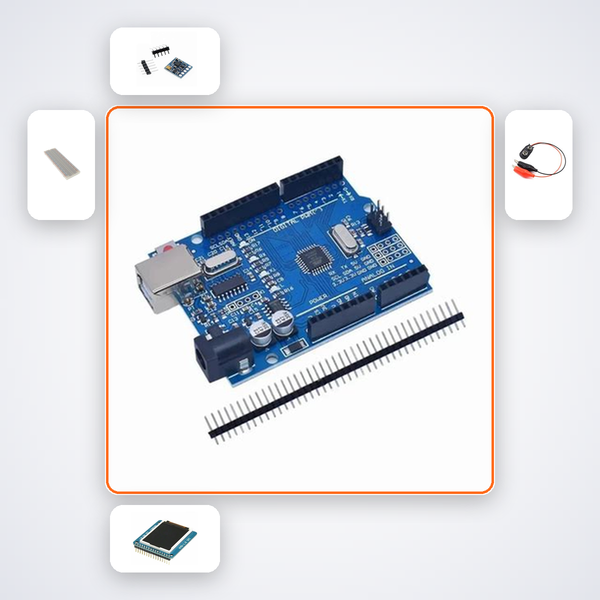

- Arduino Uno R3
- QMC5883L Compass Module
- 1.8in TFT ST7735
-
4.7kΩ Resistors x5
-
100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x10
- 9V Battery Snap
HMC5883L or QMC5883L magnetometer reads heading in degrees. TFT shows compass rose with live needle.
What's in this kit
- Arduino Uno R3
- QMC5883L Compass Module
- 1.8in TFT ST7735
- 4.7kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- M-F Wires x10
- 9V Battery Snap
