Modbus RTU Sensor Gateway Kit with Arduino Mega + LED
Build an Industrial IoT Gateway: Arduino Mega Reads Modbus RTU, ESP8266 Publishes to MQTT
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This kit transforms an Arduino Mega into a Modbus RTU master that polls RS485 sensors—temperature transmitters, humidity probes, pressure gauges—and bridges their data to cloud platforms via an ESP8266 MQTT client. You’ll create the same data pipeline used in factory floors and smart buildings, giving hands-on experience with real-world SCADA connectivity.
What You'll Build
You’ll assemble a fully functional gateway: the MAX485 transceiver handles differential signaling, the Mega parses holding and input registers, the OLED displays live values, and the ESP8266 sends JSON payloads to any MQTT broker like Adafruit IO or AWS IoT. The modular design lets you swap in different Modbus slave devices for condition monitoring, energy logging, or precision agriculture.
What You'll Learn
- Configuring RS-485 with MAX485 transceiver, biasing resistors, and termination for reliable multi-drop buses.
- Writing Arduino Modbus master code to request register data using the standard RTU frame format.
- Setting up ESP8266 MQTT over WiFi with TLS, topics, and last-will features for industrial uptime.
- Interfacing an I2C OLED for local diagnostics, register inspection, and sensor health display.

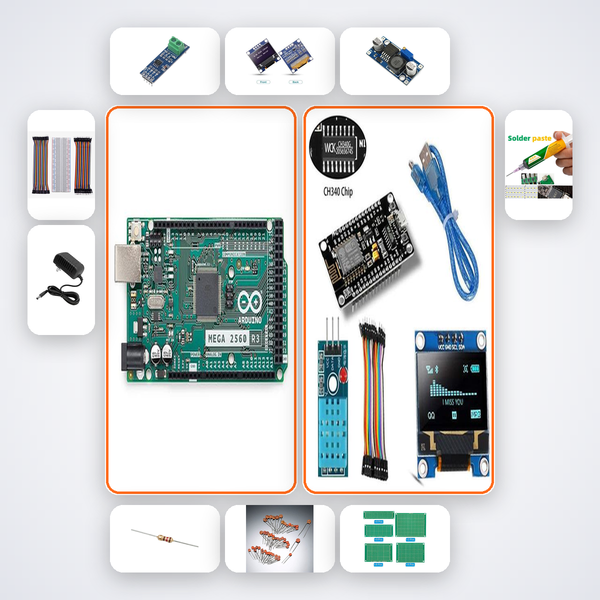

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| ESP8266 NodeMCU | 1 |
| MAX485 RS485 Transceiver | 1 |
| 0.96in OLED | 1 |
| LM2596 Buck Converter | 1 |
| 120Ω Resistors | 5 |
| 10kΩ Resistors | 5 |
| 100nF Capacitors | 10 |
| PCB Prototype Board | 2 |
| Male-to-Male Jumper Wires | 25 |
| 12V DC Adapter | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE/EEE majors at IITs, NITs, VIT, and BITS crafting industrial IoT capstone projects. Smart India Hackathon teams prototyping remote sensor dashboards for factory or farm. CBSE Class 12 students working on ATL Tinkering Lab extensions will need prior Arduino experience; the kit expects familiarity with serial protocols and the Arduino IDE.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI companion shows wiring diagrams and code snippets; you can also send a photo over WhatsApp for human engineer support.
Can I connect multiple Modbus sensors to the same RS485 bus?
Yes. RS485 supports multi-drop networks; the kit includes 120Ω termination resistors to ensure signal integrity when you connect several slave devices.
Does the kit include the Modbus sensor itself?
No. This is the gateway and tool set. You supply any standard Modbus RTU sensor (e.g., temperature, humidity, pressure transmitter). The firmware and AI companion guide you through polling any slave ID.
Is this suitable for B.Tech final year IoT projects?
Absolutely. The project directly aligns with embedded systems, SCADA, and IoT curricula. You’ll receive a schematic, block diagram, and sample MQTT data flow ready for your report.
Arduino Mega reads RS485 Modbus RTU sensor values and re-publishes them to MQTT over ESP8266 WiFi bridge.
What's in this kit
- Arduino Mega 2560
- ESP8266 NodeMCU
- MAX485 RS485 Transceiver
- 0.96in OLED
- LM2596 Buck Converter
- 120Ω Resistors x5
- 10kΩ Resistors x5
- 100nF Caps x10
- PCB Prototype Board x2
- M-M Wires x25
- 12V Adapter
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
