Multi-Room Temperature Balancer Kit with Arduino Mega + Servo

SKU: CDN-KIT-0227-CL-SLD Brand: Compoden Category: Electronics > Home Automation > Project Kits
Rs. 1,230.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Multi-Room Temperature Balancer Kit: Mega, 3 DS18B20, Servos — an advanced-level kit.

Multi-Room Temperature Balancer Kit: Mega, 3 DS18B20, Servos

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hrs Skill: Multi-zone sensor-actuator feedback control

Kit at a glance

What you build: A multi-room temperature balancer: DS18B20 probes in three rooms tell an Arduino Mega which are too cold or too warm, and SG90 servos open or close a small damper in each room's duct to share the warm air more evenly. A central OLED shows all three rooms.

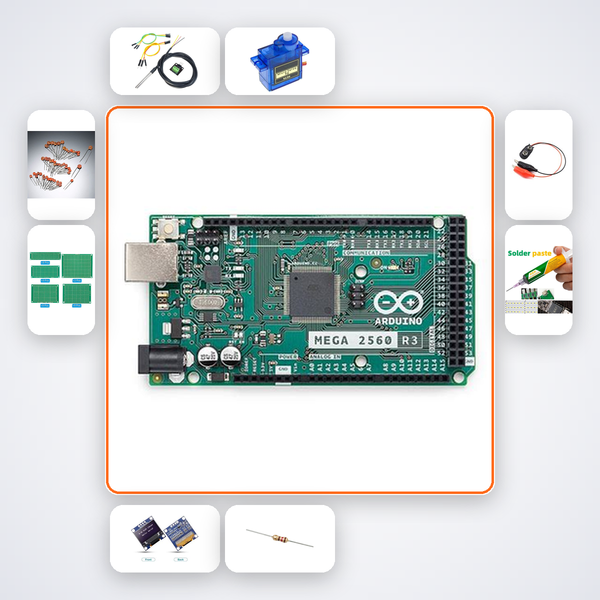

What's in the box

  • Arduino Mega 2560
  • DS18B20 Probe × 3
  • SG90 Servo × 3
  • 0.96in OLED
  • 4.7kΩ Resistors × 10
  • 100nF Caps × 10
  • PCB Prototype Board × 2
  • M-M Wires × 30
  • 9V Battery Snap
  • Soldering Iron
  • Solder Wire

Power: 9V battery, not included. Three servos need a 5V supply; a 9V battery won't last. Dampers are not included.

Skill level: Intermediate (5-6 hours).

Frequently asked questions

Can an SG90 move a real damper?

Only a small, light one; full-size ducts need stronger actuators.

Is it a thermostat?

It balances rooms; it doesn't run the heater.

Transform uneven room temperatures into a comfortable, balanced home climate. This project equips you to build a smart damper system that automatically redirects warm air to the rooms that need it most, using real-time sensor data. It’s a practical introduction to closed-loop control commonly found in modern HVAC installations, now in your hands.

What You'll Build

A fully functional prototype that reads temperatures from three DS18B20 probes, displays live zone temperatures on a 0.96-inch OLED, and actuates three SG90 servos to adjust air dampers accordingly. The system continuously balances warm air distribution to eliminate hot and cold spots, giving you a hands-on home automation proof-of-concept.

What You'll Learn

  • Multi-channel temperature sensing with DS18B20 probes and Arduino Mega
  • Servo motor control for precise physical damper actuation
  • Algorithmic feedback control for real-time temperature balancing
  • I2C OLED display integration for zone-wise live monitoring

Kit Contents

Component Quantity
Arduino Mega 2560 1
DS18B20 Probe 3
SG90 Servo 3
0.96in OLED 1
4.7kΩ Resistors 10
100nF Caps 10
PCB Prototype Board 2
M-M Wires 30
9V Battery Snap 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This advanced kit is built for engineering students tackling home automation projects, Smart India Hackathon teams developing energy-efficient solutions, and hobbyists serious about IoT-enabled climate control. Perfect for B.Tech ECE/EEE third-year mini projects, ATL Tinkering Lab mentors, and anyone aiming to prototype a multi-zone HVAC control system.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code to chat with the AI companion trained specifically for this kit. You can also reach us on WhatsApp—we’ll walk you through any step.

Can I scale this to more than three rooms?

Yes, the Arduino Mega has ample I/O pins. The AI companion includes guidance on adding more DS18B20 probes and servos, along with the necessary code modifications.

Does this kit include the physical damper blades?

The kit provides SG90 servos that actuate common air dampers; you will need to fabricate or source the damper blades. We offer 3D printing file suggestions for common duct sizes.

Will this work with a central heating system?

The sensor and servo assembly integrates into most warm-air duct systems. The AI companion provides mounting tips for sheet metal or flex duct applications, ensuring a secure fit.

DS18B20 probes in three rooms control damper servos to balance warm air distribution. Master OLED shows all zones.
