OLED Analog Clock Face Kit with Arduino Uno + LED

SKU: CDN-KIT-2007-CL Brand: Compoden Category: Electronics > Data & Visualization > Project Kits
Rs. 1,030.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

OLED Analog Clock Face Kit: Arduino Uno, DS3231, OLED — a beginner-level kit.

OLED Analog Clock Face Kit: Arduino Uno, DS3231, OLED

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: OLED graphics & RTC programming

Kit at a glance

What you build: An OLED analog clock: a DS3231 keeps accurate time and an Arduino Uno draws a classic round clock face with moving hour, minute and second hands on a 0.96-inch OLED, a lesson in drawing with angles.

What's in the box

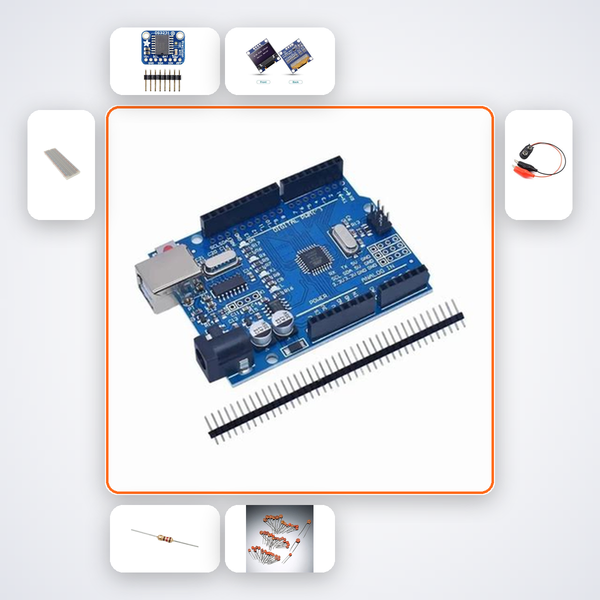

  • Arduino Uno R3
  • DS3231 RTC
  • 0.96in OLED
  • 4.7kΩ Resistors × 5
  • 100nF Caps × 5
  • 400-pt Breadboard
  • M-M Wires × 20
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Beginner (2-3 hours, no soldering).

Frequently asked questions

How do the hands move?

Each angle is worked out from the time with sine and cosine.

Does it keep time when unplugged?

The DS3231's coin cell (not included) keeps it running.

Watch the hands sweep across a crisp OLED screen as you build your own classic analog clock face. The DS3231 precision real-time clock module feeds your Arduino Uno exact time data, and your code moves hour, minute, and second hands in real-time, creating a reliable desk clock that never needs resetting. This project brings together timekeeping hardware, graphic display logic, and clean breadboard wiring into one satisfying build.

What You'll Build

You will assemble a breadboard circuit that reads the time from the DS3231 RTC and renders a circular clock face with sweeping hands on a 0.96-inch OLED display. The screen updates every second, showing a second hand that rotates smoothly while the hour and minute hands track position precisely. The finished clock is a portable timepiece that runs on a 9V battery and looks great on any desk.

What You'll Learn

  • How to interface a DS3231 RTC with Arduino over I2C and read accurate date and time
  • Using the U8g2 library to draw shapes, lines, and text on a 0.96-inch OLED
  • Converting RTC time data into angular coordinates for analogue clock hands
  • Wiring a stable breadboard circuit with decoupling capacitors and pull-up resistors

Kit Contents

Component Quantity
Arduino Uno R3 x1
DS3231 RTC x1
0.96in OLED x1
4.7kΩ Resistors x5
100nF Caps x5
400-pt Breadboard x1
M-M Wires x20
9V Battery Snap x1

Why Buy This Kit Instead of Sourcing Parts Separately

Factor Sourcing Separately Compoden Kit
Compatibility checks

DS3231 RTC draws a classic analog clock face on OLED with hour, minute and second hands rotating.

What's in this kit
