Nursery Climate Gauge Panel Kit: Uno, DHT22, BH1750, TFT

SKU: CDN-KIT-3865-CL Brand: Compoden Category: Electronics > Data & Visualization > Project Kits
Rs. 1,500.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Nursery Climate Gauge Panel Kit: Uno, DHT22, BH1750, TFT — a beginner-level kit.

Nursery Climate Gauge Panel Kit: Uno, DHT22, BH1750, TFT

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Multi-sensor data visualisation

Kit at a glance

What you build: A nursery climate gauge panel: an Arduino Uno draws three gauges on a 1.8-inch colour TFT at once, showing temperature and humidity (DHT22), air pressure (BMP280) and light level (BH1750), so you can see if the room is too warm, dry or bright at bedtime.

What's in the box

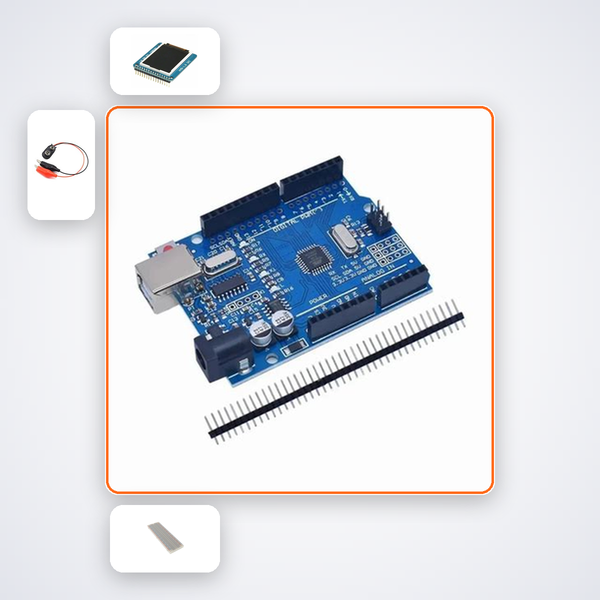

  • Arduino Uno R3
  • DHT22
  • BMP280
  • BH1750
  • 1.8in TFT ST7735
  • 4.7kΩ Resistors × 10
  • 100nF Caps × 10
  • 400-pt Breadboard
  • M-M Wires × 25
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Beginner (2-3 hours, no soldering).

Frequently asked questions

Is it a baby monitor?

No. It shows room conditions only.

Why light?

A bright room at bedtime shows up on the light gauge.

This kit lets you build a real-time monitor that shows temperature, humidity, pressure, and light on a TFT screen. Using the Arduino Uno and sensors, you’ll see three clean gauges updating instantly.

What You'll Build

You’ll assemble a compact monitoring station that draws three analog-style gauges simultaneously on a 1.8-inch TFT: temperature and humidity from DHT22, atmospheric pressure from BMP280, and ambient light from BH1750. Place it in the nursery and know at a glance if the room is too warm, damp, or dim.

What You'll Learn

  • Connecting DHT22, BMP280, and BH1750 sensors to Arduino Uno
  • Drawing analog-style gauge graphics on the TFT display using the ST7735 library
  • Combining multiple sensor readings into a single real-time dashboard
  • Understanding room comfort ranges and monitoring temperature, humidity,

    DHT22, BMP280 and BH1750 displayed as three gauges on TFT simultaneously. Clean dashboard layout.
