OLED Line Graph Plotter Kit with Arduino Uno + LED

SKU: CDN-KIT-2001-CL Brand: Compoden Category: Electronics > Data & Visualization > Project Kits
Rs. 890.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

OLED Live Line Graph Plotter Kit: Arduino Uno, Potentiometer — a beginner-level kit.

OLED Live Line Graph Plotter Kit: Arduino Uno, Potentiometer

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 1-2 hrs Skill: Real-Time Data Visualization

Kit at a glance

What you build: A live line graph: turn a potentiometer and an Arduino Uno draws its value as a scrolling line graph on a 0.96-inch OLED, your first real-time data visualisation, ready to swap in any sensor.

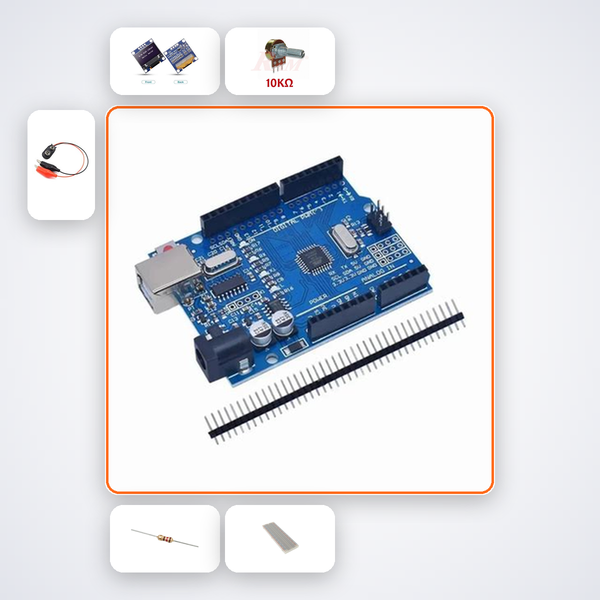

What's in the box

  • Arduino Uno R3
  • 0.96in OLED
  • 10kΩ Potentiometer
  • 4.7kΩ Resistors × 5
  • 400-pt Breadboard
  • M-M Wires × 15
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Beginner (2-3 hours, no soldering).

Frequently asked questions

Can I graph a sensor?

Yes, replace the potentiometer reading with any sensor.

How fast does it scroll?

You set it in code.

Turn an ordinary potentiometer into a live scrolling line graph on a crisp OLED screen. This kit demystifies how microcontrollers read analog data and make it visual — a foundational skill for sensor dashboards, IoT monitors, and science experiments.

What You'll Build

You’ll wire a potentiometer to an Arduino Uno, connect a 0.96-inch OLED display, and upload code that continuously reads the knob’s position and draws a scrolling line chart. As you twist, the line moves across the screen, showing real-time values — exactly like an ECG monitor or a weather station plot.

What You'll Learn

  • Read analog voltage from a potentiometer using Arduino’s ADC
  • Interface a 0.96-inch OLED display via I2C
  • Draw graphical primitives (lines, rectangles) to create a scrolling chart
  • Translate sensor data into meaningful visual output in real time

Kit Contents

Component Quantity
Arduino Uno R3 x1
0.96in OLED x1
10kΩ Potentiometer x1
4.7kΩ Resistors x5
400-pt Breadboard x1
M-M Wires x15
9V Battery Snap x1

Who This Kit Is For

CBSE students, B.Tech ECE first-years, ATL Tinkering Lab mentors, and parents of makers (8+) who want a guided first Arduino data visualization experience.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code to launch the AI companion, which walks you through each connection and troubleshoots issues step-by-step. You can also reach us on WhatsApp for personalized support.

Can I display data from another sensor instead of the potentiometer?

Yes, once you understand the graph plotting logic, you can swap in any analog sensor (LDR, temperature, force) to visualize its readings.

What if the OLED screen remains blank after uploading?

Check the I2C connections and ensure the correct library is installed. The AI companion has a dedicated debugging flow for display issues and common wiring mistakes.

Potentiometer value drawn as a scrolling line graph on OLED. First real-time data visualization build.
