Photobiomodulation Therapy Controller Variant 29 Kit with ESP32 + LED
ESP32 Photobiomodulation Therapy Controller Kit with Dose-Tracked Pulsed LED Sessions
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Take control of your wellness regimen with a custom-built photobiomodulation device that precisely delivers 850nm near‑infrared and 630nm red light at therapeutic frequencies. Whether you’re exploring light therapy for muscle recovery, skin rejuvenation, or circadian rhythm optimization, this kit provides the core controller to run clinician-grade pulsed protocols while logging every session for data-driven refinement.
What You’ll Build
A programmable ESP32‑based controller that drives high-power LED arrays through MOSFET switching, generating precisely timed light pulses. The device features an OLED display for real-time session feedback, an RTC for timestamped dose logging to a microSD card, and a regulated 12V power stage—all housed in a durable enclosure. You’ll emerge with a tool that not only runs therapy sessions but also archives exposure data for longitudinal tracking.
What You’ll Learn
- Designing MOSFET-driven LED pulsing circuits for high-current therapeutic arrays.
- Programming ESP32 to manage multi-wavelength PWM with real-time clock synchronization.
- Logging treatment parameters (pulse width, frequency, duration) to microSD for data analysis.
- Assembling a stable 12V buck-converted power supply and integrating safety diodes.
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | x1 |
| IRF540N MOSFET | x3 |
| 850nm LED High Power | x4 |
| 630nm LED High Power | x4 |
| DS3231 RTC | x1 |
| MicroSD Module | x1 |
| 0.96in OLED | x1 |
| LM2596 Buck Converter | x1 |
| 100Ω Gate Resistors | x5 |
| 10kΩ Resistors | x5 |
| 1N4007 Diode | x5 |
| PCB Prototype Board | x2 |
| 12V 3A PSU | x1 |
| Enclosure Box | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify MOSFET gate thresholds, LED forward voltages, and PSU ripple | Pre-tested as a system with correct gate resistors and buck output |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE/EEE final-year students working on health-tech projects, biomedical researchers prototyping light therapy devices, and DIY wellness enthusiasts from IIT/NIT/VIT/BITS exploring quantified-self technologies. Also ideal for professionals developing Smart India Hackathon solutions in health and wearable domains.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI companion provides real-time troubleshooting; you can also reach us on WhatsApp for personalized assistance within 24 hours.
Can I customize the therapy frequencies for my specific protocol?
Yes, the ESP32 code is fully modifiable. The AI companion can guide you through adjusting PWM parameters to match your desired pulse width and frequency.
Is this kit safe for long-term use on skin?
The high-power LEDs are designed for brief pulsed exposure; we recommend following established PBMT guidelines. The included documentation covers safe pulse durations and thermal management.
Do I need prior experience with MOSFET circuits?
The kit assumes familiarity with basic electronics; however, the AI companion provides step-by-step assembly instructions. Some soldering experience is beneficial.

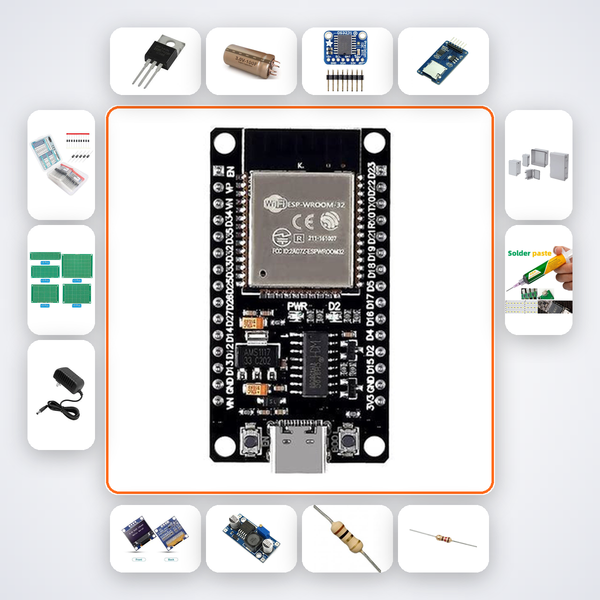

850nm and 630nm LED arrays pulsed at therapeutic frequencies for PBMT session with dose tracking.
What's in this kit
- ESP32 Dev Board
- IRF540N MOSFET x3
- 850nm LED High Power x4
- 630nm LED High Power x4
- DS3231 RTC
- MicroSD Module
- 0.96in OLED
- LM2596 Buck Converter
- 100Ω Gate Resistors x5
- 10kΩ Resistors x5
- 1N4007 Diode x5
- PCB Prototype Board x2
- 12V 3A PSU
- Enclosure Box
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
