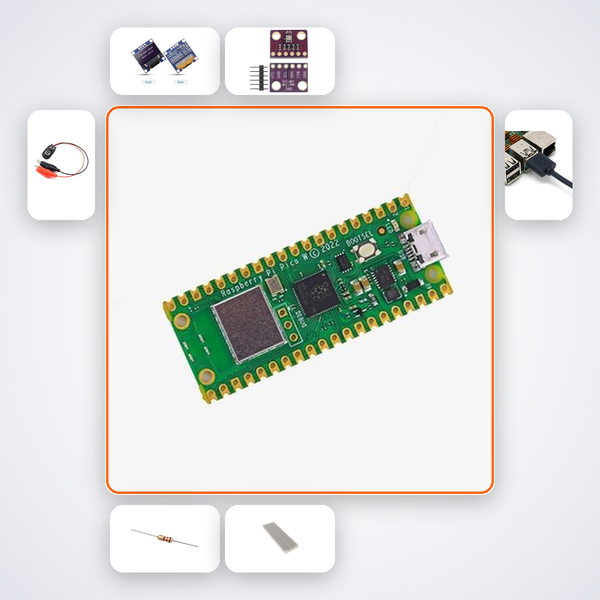

Build Your Own I2C Diagnostic Tool with Pi Pico Scanner Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Ever plugged in a new I2C sensor only to get no response, staring at a blank screen or garbled data? The Pi Pico I2C Scanner kit turns your Raspberry Pi Pico into a dedicated address finder. In under two hours, you’ll assemble a compact diagnostic tool that scans every I2C address from 1 to 127 and instantly displays found devices on the OLED and in the REPL. No more guesswork, no more wasted hours—just a clear, reliable hardware debugging companion every maker needs on their workbench.

What You'll Build

You’ll construct a self-contained I2C scanner that powers up, auto-runs a MicroPython script, and reports connected devices. The 0.96-inch OLED shows a live scan progress bar and lists detected addresses. The included BMP280 sensor acts as a test device—confirming the scanner sees it at address 0x76 or 0x77. Once built, you can plug in any other I2C module, from LCD backpacks to ADC converters, and this tool will tell you exactly where to address them in your code.

What You'll Learn

• Flash MicroPython firmware onto a Raspberry Pi Pico and set up the development environment
• Understand the I2C protocol basics—SDA, SCL, addressing, and pull-up resistors
• Interface an OLED display and BMP280 sensor using I2C on the Pico
• Debug hardware by isolating I2C communication issues without a logic analyzer

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

CBSE Class 11-12 students diving into embedded systems will find this scanner invaluable for school projects and practicals. B.Tech ECE/EEE undergraduates can use it as a mini project for microcontroller labs or Smart India Hackathon prototyping. ATL Tinkering Lab participants and hobbyists at makerspaces across IITs, NITs, VIT, and BITS Pilani love it as a go‑to debugging tool. Young makers aged 10 and above, with adult supervision, can also learn the magic of digital communication through a real, working instrument.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
