Pi Zero 2W Industrial Serial Gateway Kit with Raspberry Pi Zero
Pi Zero 2W Industrial Serial Gateway Kit — Bridge RS485 Modbus Sensors to MQTT with Raspberry Pi
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Turn a single Raspberry Pi Zero 2W into the heart of an industrial sensor network. This kit puts you behind the wiring and code of a real RS485-to-MQTT gateway — the exact architecture used on factory floors to push Modbus RTU data from temperature sensors, flow meters, and VFDs into modern cloud dashboards. In 5-6 focused hours, you’ll solder, script, and deploy a compact device that speaks the language of legacy industrial hardware and tomorrow’s IoT platforms.
What You'll Build
A fully functional RS485-Modbus-to-MQTT bridge running on the Pi Zero 2W. You’ll solder the MAX485 transceiver and biasing resistors onto the GPIO header, write Python code that polls Modbus holding registers, and pushes timestamped JSON payloads to an MQTT broker over WiFi. The final gateway boots into a headless Linux service that silently translates half-duplex serial conversations into retained, structured messages ready for Node-RED, Home Assistant, or AWS IoT Core.
What You'll Learn
- Wiring differential RS-485 signaling with the MAX485, 120Ω termination, and 10kΩ fail-safe biasing for reliable noise immunity on long buses.
- Parsing raw Modbus RTU frames and extracting multi-register sensor values using the minimalmodbus Python library.
- Publishing MQTT messages with configurable QoS levels, topic structures, and retained last-known-good values for disconnected clients.
- Configuring the Pi Zero 2W as a headless industrial gateway with systemd services that autostart the bridge on boot.
Kit Contents
| Component | Quantity |
|---|---|
| Raspberry Pi Zero W | x1 |
| MAX485 RS485 | x1 |
| 40-pin GPIO Header | x1 |
| 120Ω Resistors | x3 |
| 10kΩ Resistors | x5 |
| M-F Wires | x20 |
| MicroSD Card 16GB | x1 |
| Micro USB Cable | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE and EEE students working on industrial IoT capstone projects, Smart India Hackathon teams building smart-factory PoCs, and ATL Tinkering Lab mentors who want a real protocol integration module. It’s also a natural step for IIT, NIT, VIT, and BITS Pilani undergraduates who’ve outgrown I2C sensor kits and need to interface with RS-485 Modbus devices that dominate plant floors across India.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to start a conversation with the AI companion, which knows your exact wiring and code. If you hit a hardware quirk, WhatsApp us and a real human from our Bengaluru lab will jump in.
Does the MAX485 module work with the Pi’s 3.3V logic?
Yes — the included MAX485 board is pre-vetted for 3.3V operation without external level shifters. The AI guide steps you through power and signal voltage checks before you solder anything permanent.
Can I power the Pi Zero 2W and RS485 sensors independently?
Absolutely. The micro USB powers the Pi, while the RS485 bus can be externally powered. The build companion covers isolation best practices to avoid ground loops and protect your USB ports.
Do I need prior Modbus experience?
No — the AI companion teaches you the frame structure, function codes, and Python parsing as part of the build. By the time your gateway connects to an MQTT broker, you’ll understand every byte on the wire.
Pi Zero 2W reads RS485 Modbus RTU sensors via MAX485. Python bridges data to MQTT over WiFi.
What's in this kit

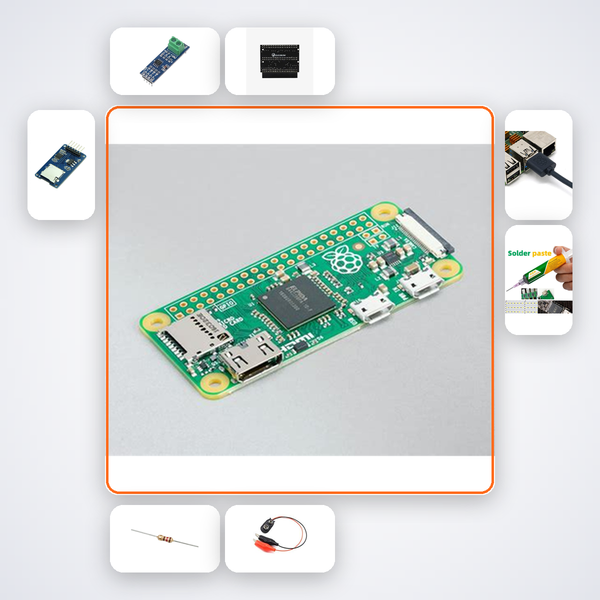

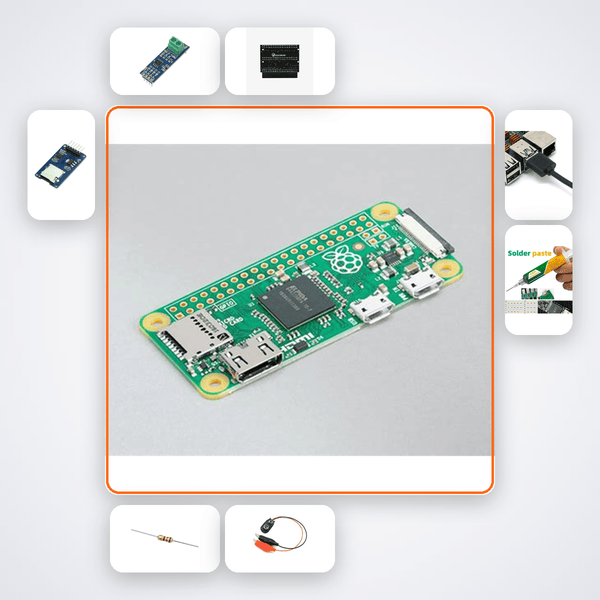

- Raspberry Pi Zero W
- MAX485 RS485
- 40-pin GPIO Header
- 120Ω Resistors x3
- 10kΩ Resistors x5
- M-F Wires x20
- MicroSD Card 16GB
- Micro USB Cable
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
