Sine Wave Function Plotter Kit with Arduino Uno + LED

SKU: CDN-KIT-2036-CL Brand: Compoden Category: Electronics > Data & Visualization > Project Kits
Rs. 1,010.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Sine Wave Function Plotter Kit with Arduino Uno + LED — a beginner-level kit.

Sine Wave Function Plotter Kit — Visualize Math with Arduino & OLED

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Real-time data visualization & sensor integration

Kit at a glance

What you build: A live sine wave plotter: two knobs set the frequency and amplitude, and an Arduino Uno draws the wave on a 0.96-inch OLED as you turn them. It makes the maths of waves something you can see.

What's in the box

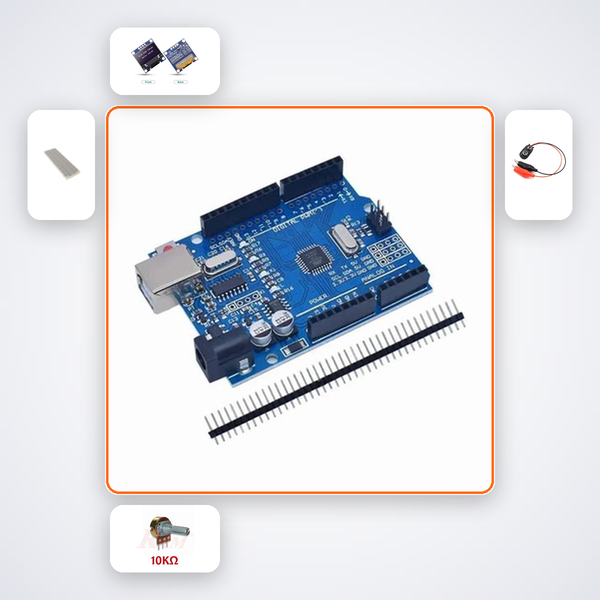

  • Arduino Uno R3
  • 0.96in OLED
  • 10kΩ Potentiometer × 2
  • 4.7kΩ Resistors × 5
  • 400-pt Breadboard
  • M-M Wires × 15
  • 9V Battery Snap

Power: 9V battery, not included.

Skill level: Beginner (2-3 hours, no soldering).

Frequently asked questions

What do frequency and amplitude mean?

How many waves fit across the screen, and how tall they are.

Can it draw other waves?

Yes. Add square or triangle formulas in code.

Do I need to solder?

No.

Watch mathematics take shape as you turn knobs to adjust a live sine wave on an OLED screen. This kit turns y=sin(x) into an adjustable display, good for trigonometry lessons and ATL Tinkering Labs.

What You'll Build

You’ll assemble a compact plotting instrument that draws a smooth sine curve on a 0.96‑inch OLED screen. Twist one knob to change frequency; twist the other for amplitude. The display updates instantly, giving hands-on intuition for trig functions and signal

Potentiometer adjusts frequency and amplitude of sine wave plotted on OLED in real time. Math visualiser.
