Stepper Motor Acceleration Profiler Kit with Arduino Uno + Stepper Motor
Stepper Motor Acceleration Profiler Kit: Master Trapezoidal & S-Curve Control with Arduino Uno and NEMA17
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform a NEMA17 stepper motor into a precisely controlled motion system that displays live RPM on an OLED screen. This intermediate kit takes you deep into acceleration profiling — the technique that makes CNC machines, 3D printers, and robotic arms move smoothly without losing steps. Whether you're preparing a Smart India Hackathon prototype or exploring motor control for a B.Tech project, you'll write AccelStepper library code to implement both trapezoidal and S-curve velocity profiles, visualizing performance in real time.
What You'll Build
By the end of this build, you'll have a working stepper motor acceleration profiler that you can command with three tactile buttons: start/stop, switch profiles, and adjust speed. The 0.96-inch OLED will show current RPM, acceleration mode, and target velocity — a compact dashboard for motion analysis.
What You'll Learn
- Implement trapezoidal velocity profiles using the AccelStepper library and understand their impact on motor jerk.
- Program S-curve acceleration profiles for smooth motion transitions, essential in precision positioning.
- Interface a 0.96-inch I2C OLED display to show real-time RPM and profile status.
- Debug stepper motor driver timing issues with an A4988 and decouple noise using filter capacitors.
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | x1 |
| NEMA 17 Stepper | x1 |
| A4988 Driver | x1 |
| 0.96in OLED | x1 |
| Tactile Button | x3 |
| 100nF Caps | x5 |
| 12V 2A PSU | x1 |
| 400-pt Breadboard | x1 |
| M-M Wires | x20 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
CBSE Class 11-12 students exploring embedded systems, B.Tech ECE/EEE students building motor-driven projects, participants in Smart India Hackathon needing a reliable motion control subsystem, and ATL Tinkering Lab mentors introducing advanced actuators. If you've completed a basic Arduino kit and are ready to move from blinking LEDs to real industrial-grade motion, this kit is your next step.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
The AI build companion linked via QR code walks you through every wiring connection and line of code. If you're still unsure, our WhatsApp support team responds in minutes with specific guidance.
Can I use this kit with a Raspberry Pi or ESP32 instead of Arduino?
The kit is designed around the Arduino Uno and the AccelStepper library, which has been thoroughly tested. While you can adapt the NEMA17 and A4988 to other platforms, the AI companion and documentation are Arduino-focused, so we recommend using the included Uno.
Does this kit teach me how to calculate acceleration profiles mathematically?
Yes. The project guide explains the underlying math behind trapezoidal and S-curve acceleration, including jerk, velocity, and position calculations, so you can design custom profiles beyond the examples.
Is this suitable for building a CNC machine or 3D printer axis?
This kit gives you the core motion control skills used in single-axis CNC and 3D printer designs. You'll learn to tune acceleration, set microstepping, and interpret real-time RPM data — directly applicable to multi-axis builds.
AccelStepper library on NEMA17 demonstrates trapezoidal and S-curve velocity profiles. OLED shows live RPM.

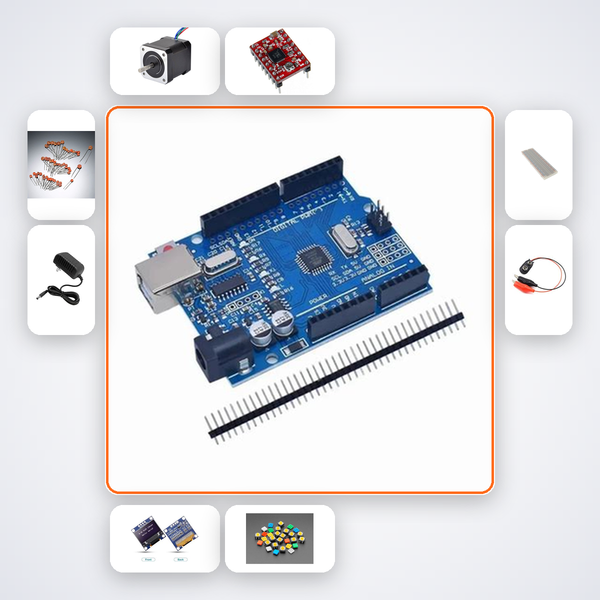

What's in this kit
