Structural Load Monitor for Airframe Variant 22 Kit with Arduino Mega + LED
Structural Load Monitor for Airframe Variant 22 with Arduino Mega & LED: Real-Time Bending Data for Rocket Static Tests
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Validate your rocket airframe’s structural integrity under simulated flight conditions. This kit lets you instrument a test airframe with three independent strain gauge channels, each using an HX711 24-bit ADC, and stream bending load data to an OLED display and SD card. Timestamped readings from the DS3231 RTC enable post-test analysis of load distribution across critical points on the variant 22 structure.
What You'll Build
You’ll assemble a complete three-point load monitoring station for a representative rocket airframe segment. The Arduino Mega reads three 50kg load cells through individual HX711 boards, filters noise with on-board capacitors, and displays live kilograms or voltage readings on the 0.96-inch OLED. Simultaneously, data is logged to a microSD card with precise timestamps. The system is designed for static load tests—applying known weights or hydraulic force—to verify that your airframe can withstand expected bending moments during launch.
What You'll Learn
- Install and calibrate three-point strain gauge arrays with HX711 24-bit ADC modules
- Integrate multiple SPI and I2C peripherals—RTC, SD card, OLED—on a single Arduino Mega without bus conflicts
- Implement data logging with real-time clock timestamps for post-test structural analysis
- Interpret bending moment data to assess airframe structural limits and failure points

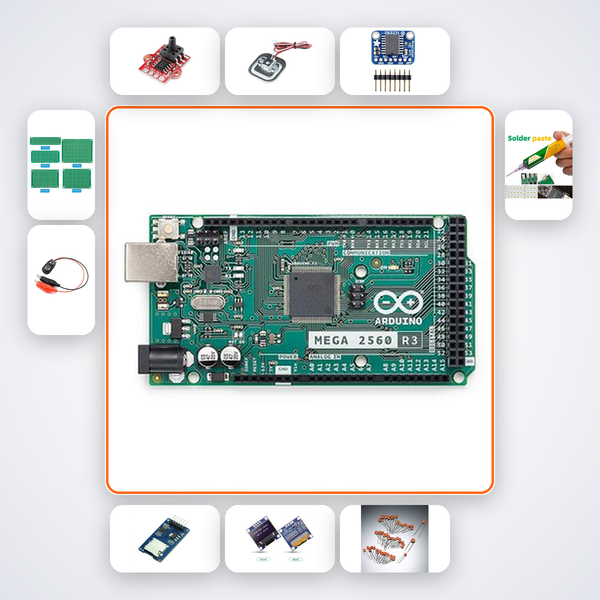

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | x1 |
| HX711 | x3 |
| 50kg Load Cell | x3 |
| DS3231 RTC | x1 |
| MicroSD Module | x1 |
| 0.96in OLED | x1 |
| 100nF Caps | x10 |
| PCB Prototype Board | x2 |
| 9V Battery Snap | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part: HX711 excitation voltage, load cell wiring, SPI device conflicts | Pre-tested as a system; shared power rails, decoupling caps included, pin mapping verified for three simultaneous load channels |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech Aerospace and Mechanical students designing sounding rocket airframes or participating in SAE Aero Design will find this kit indispensable for pre-flight structural validation. Smart India Hackathon teams working on launch vehicle sub-systems can quickly deploy a three-point load monitor. Final-year project groups at IITs, NITs, and VIT can use the logged data for bending moment analysis and failure mode documentation.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to open the AI companion, which walks you through each connection and calibration step. You can also send a WhatsApp message for real-time engineer support.
Can this setup measure dynamic loads during a live launch?
This kit is optimized for static testing; for dynamic flight loads you would need higher-speed ADCs and a rigid mounting system. We recommend using it for pre-flight structural validation as intended.
How do I calibrate the load cells for accurate bending moment calculation?
The AI companion includes a calibration procedure using known weights and guides you through zero-offset and scale factor programming in the Arduino sketch.
Can I expand to more than three measurement points?
The Arduino Mega has sufficient I/O, but you would need additional HX711 and load cells, and modify the multiplexing code. The companion provides guidance on extending the system to five or six channels if required.
Strain gauge and HX711 measure structural bending loads at three points along rocket airframe during static test.
