Lunar Regolith Sensor Array Kit with Arduino Mega - Space Simulation
Advanced Lunar Regolith Analysis Kit with Arduino Mega - Simulate Soil Characterisation for Space Missions
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine analysing soil samples on a simulated lunar base. This kit equips you with a full sensor array - colour, pH, conductivity, and visible-spectrum spectral sensing - to characterise lunar regolith simulants just like a rover's payload. You'll calibrate sensors, collect data, and log results to understand how future missions might assess extraterrestrial resources.
What You'll Build
You'll build a multi-sensor measurement station that reads colour (TCS3200), pH, total dissolved solids (TDS) as a proxy for conductivity, and full spectral reflectance (AS7265x) from a sample of simulated lunar soil. The system displays readings on a 2.4-inch TFT, timestamps data with an RTC, and logs to microSD. You'll create a compact, calibrated instrument ready for soil analysis experiments.
What You'll Learn
- Calibrating multispectral sensors (AS7265x) for soil reflectance signatures.
- Interfacing analog pH and conductivity probes with Arduino Mega for environmental sensing.
- Using an RTC and microSD module for time-series data logging.
- Designing a portable prototype with integrated display and power supply.

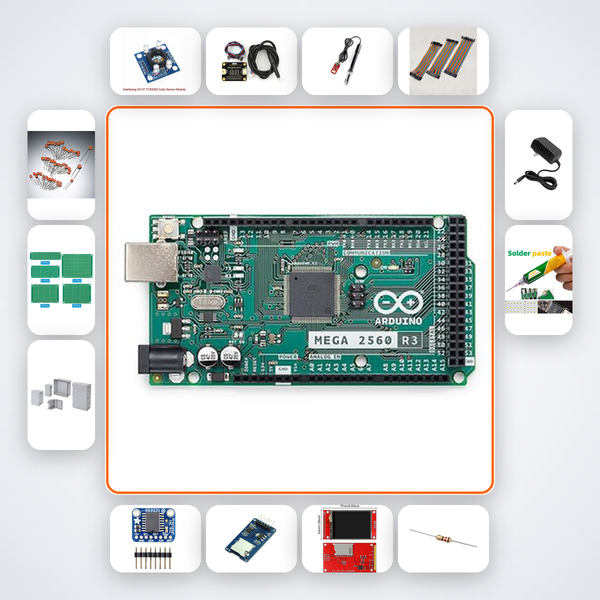

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | x1 |
| TCS3200 Colour Sensor | x1 |
| TDS EC Meter | x1 |
| Analog pH Module | x1 |
| AS7265x Spectral | x1 |
| DS3231 RTC | x1 |
| MicroSD Module | x1 |
| 2.4in TFT ILI9341 | x1 |
| 4.7k? Resistors | x5 |
| 100nF Caps | x15 |
| PCB Prototype Board | x3 |
| Enclosure Box | x1 |
| 12V 3A PSU | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This advanced kit is ideal for B.Tech ECE/EEE students designing instrumentation projects, participants in the Smart India Hackathon space stream, or researchers prototyping lunar resource analysis hardware. It's also suited for ATL Tinkering Lab mentors seeking interdisciplinary electronics-science projects for advanced learners.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Your Compoden kit includes a QR code linking to an AI build companion trained on this exact project. If you need further help, you can reach our support team via WhatsApp for personalised guidance.
Can I use actual soil instead of lunar simulant?
Yes, the sensors measure general soil properties. You can test garden soil or sand, calibrating for different moisture and mineral content. The AI companion includes notes on adapting calibration.
Does this kit require soldering?
Yes, you'll assemble circuits on prototype PCBs, so soldering is needed. The kit includes a soldering iron and solder wire, but prior soldering experience is recommended. The AI companion provides step-by-step guidance.
How accurate are the spectral readings for mineral identification?
The AS7265x provides 18-channel visible spectral data. For regolith simulant analysis, it can distinguish iron oxide minerals like hematite or ilmenite with proper calibration. The kit's AI companion offers calibration routines and sample data for comparison.
Pool Maintenance - TCS3200 colour + conductivity + pH sensor array characterises simulated lunar regolith samples.
