Thermal Imaging Perimeter Alert Kit with Arduino Uno + Camera
Thermal Imaging Perimeter Alert Kit with Arduino Uno & AMG8833 – Build a Virtual Boundary Security System
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
When a warm body crosses a virtual boundary you define, an alarm sounds—all without a visible camera. With the AMG8833 8×8 thermal sensor, you’ll build a non‑intrusive perimeter alert system for labs, restricted zones, or entryways. Every part in this kit is pre‑tested to work together, so you can focus on designing the detection algorithm and deploying a working prototype in hours.
What You'll Build
A self‑contained device that monitors a thermal grid, detects human movement crossing a user‑defined line, and triggers a buzzer and LED alert. The OLED displays a real‑time heatmap of temperature zones, and you can refine detection thresholds to ignore small animals or warm objects. Power it from a 9V battery and mount it at any entry point to create a silent, non‑optical guard.
What You'll Learn
- Reading 8×8 thermal pixel data from the AMG8833 over I2C and interpreting it in Arduino code
- Implementing a virtual trip‑wire or boundary‑crossing algorithm using frame‑by‑frame comparison
- Configuring the 0.96″ OLED to render a live thermal heatmap with colour‑coded temperature ranges
- Soldering a permanent shield on a PCB prototype board, integrating the sensor, buzzer, and display into a reliable, portable unit

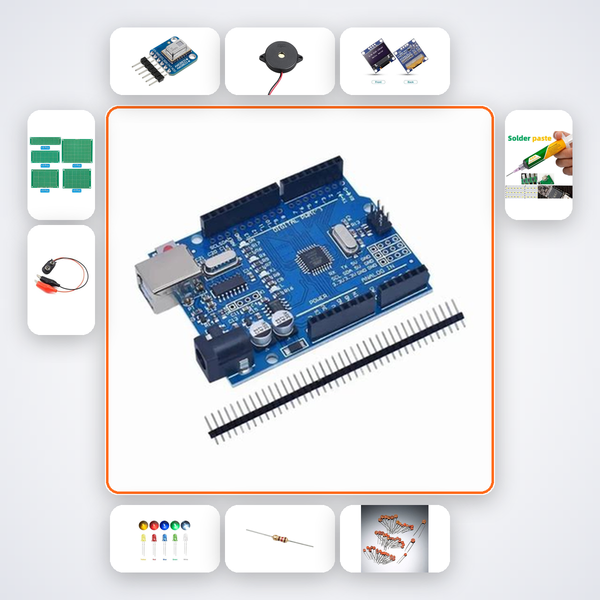

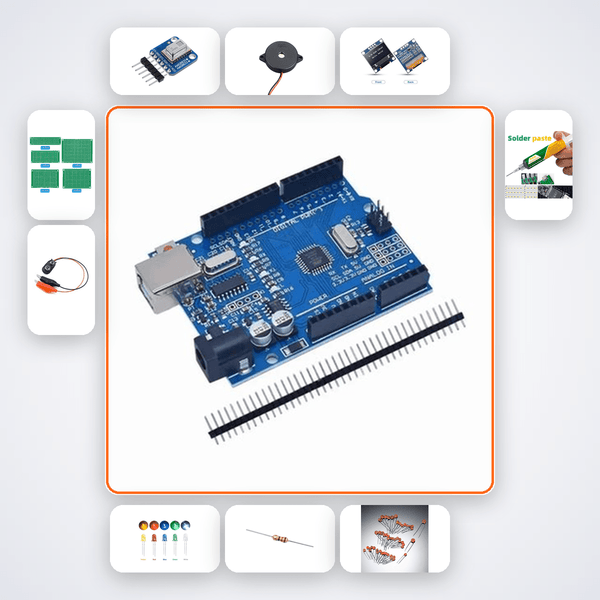

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| AMG8833 Thermal Camera | 1 |
| Active Buzzer | 1 |
| 0.96in OLED | 1 |
| 5mm Red LED | 2 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 5 |
| PCB Prototype Board | 2 |
| 9V Battery Snap | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Designed for B.Tech ECE/EEE students tackling thermal imaging projects in Smart India Hackathon, final‑year capstone at IIT/NIT/VIT/BITS, or self‑learners building an autonomous security system. Also fits ATL Tinkering Lab mentors demonstrating advanced sensor integration to senior students. If you can solder and are comfortable with I2C libraries, you’ll master this build.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to access the AI companion trained on this exact kit. If you still need help, reach us on WhatsApp for a same‑day response.
Can I adjust the virtual boundary position?
Yes, the code allows you to define any line in the 8×8 thermal grid; we include example sketches for horizontal, vertical, and diagonal trip‑wires so you can adapt the boundary to your environment.
Does it detect anything other than humans?
The AMG8833 detects any object warmer than the background. By tuning the temperature threshold and persistence in the code, you can ignore small animals, stray warm appliances, or temporary heat changes.
Is soldering required?
Yes, the kit includes a soldering iron and solder wire so you can build a permanent shield on the prototype board for a rugged final product. All connections are also breadboard‑compatible if you prefer to prototype without soldering first.
AMG8833 8x8 thermal camera detects warm body crossing a virtual boundary in the frame.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
