Thermal Imaging Perimeter Alert Variant 24 Kit with Arduino Uno + Camera
Build a Thermal Imaging Perimeter Alert System with Arduino Uno & AMG8833 – Advanced Security Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Deploy a thermal perimeter around a doorway, restricted area, or corridor. This kit lets you process an 8×8 thermal array from the AMG8833 camera and automatically trigger an intrusion alarm the moment a warm body crosses your virtual boundary — exactly the kind of logic used in commercial security systems.
What You'll Build
An Arduino-based system that continuously reads the AMG8833’s 8×8 pixel temperature grid. You’ll program a user-defined virtual line across the frame and instantly activate a loud active buzzer and two flashing red LEDs whenever a warm object (human or animal) breaches it. Live coordinates and temperature alerts appear on the 0.96‑inch OLED.
What You'll Learn
- Reading and processing 8×8 thermal array data from the AMG8833 over I2C
- Defining and monitoring a virtual perimeter boundary using pixel thresholds
- Triggering real‑time alarms with an active buzzer and LED indicators
- Debugging sensor integration on a solderless prototype board with Arduino Uno

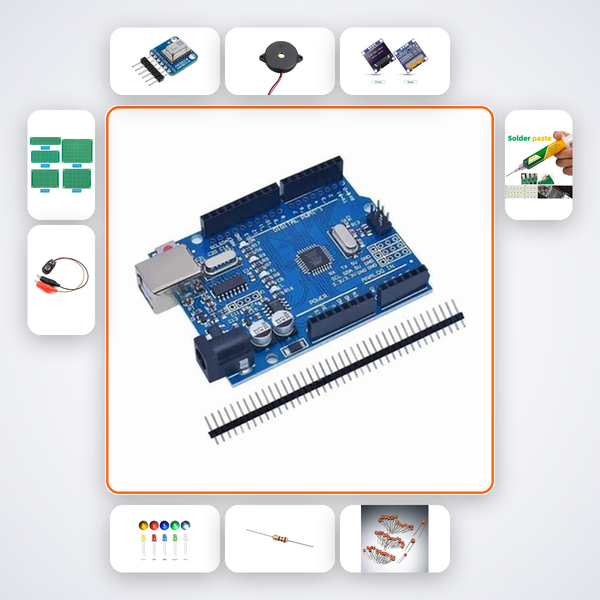

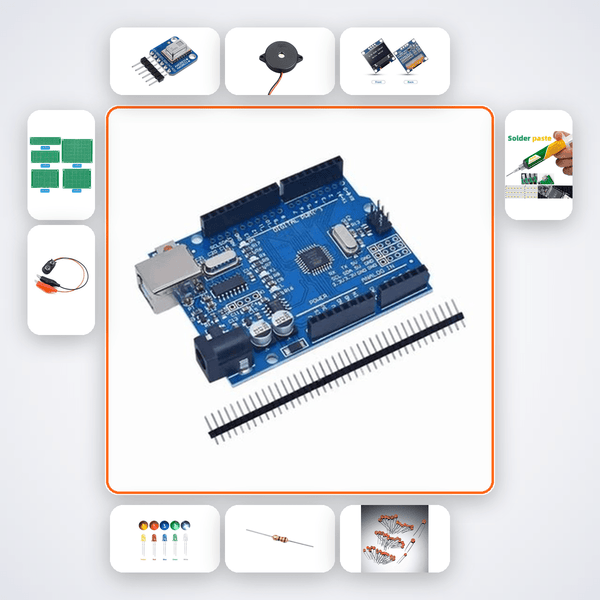

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | x1 |
| AMG8833 Thermal Camera | x1 |
| Active Buzzer | x1 |
| 0.96in OLED | x1 |
| 5mm Red LED | x2 |
| 4.7kΩ Resistors | x5 |
| 100nF Caps | x5 |
| PCB Prototype Board | x2 |
| 9V Battery Snap | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE, EEE, and CSE students looking for a challenging security project, Smart India Hackathon participants building intrusion detection prototypes, and advanced tinkerers at ATL labs. The 8×8 thermal grid and real‑time processing make it an excellent final‑year project for IIT, NIT, VIT, and BITS Pilani students.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code inside your box to open the AI build companion; it walks you through every wiring and coding step. You can also message us on WhatsApp for direct help.
Can I define more than one boundary line?
Yes, the base code monitors one of several pre-defined lines, and the AI guide shows you how to extend it to multiple zones with different alert responses.
Does this work in complete darkness?
Absolutely. The AMG8833 thermal camera detects infrared heat radiation, not visible light, so it functions in pitch‑black conditions, making it ideal for night‑time perimeter security.
Is soldering required for this advanced kit?
Yes. You’ll need to solder the pin headers onto the OLED and AMG8833 modules for reliable connections; we include a quality soldering iron, solder wire, and a detailed video guide.
AMG8833 8x8 thermal camera detects warm body crossing a virtual boundary in the frame.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
