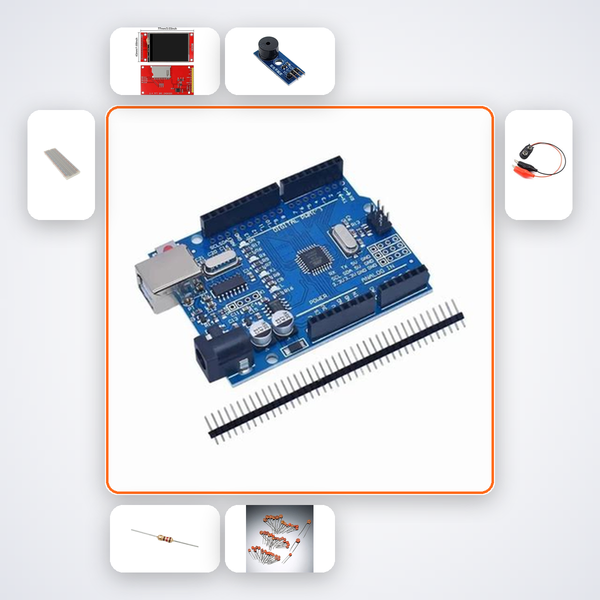

Touch TFT Piano Roll Kit: Visualize Every Note with Arduino Uno

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Turn a simple touch into a rolling musical score. With this kit, you'll build a real electronic instrument that not only plays sounds through a passive buzzer but also draws each note's timing, pitch, and duration on a bright 2.4-inch TFT screen, just like a digital audio workstation. The XPT2046 touch controller maps your finger taps to musical notes while the ILI9341 display plots them in real time, giving you a visual timeline of every performance.

What You'll Build

By the end of this project, you'll have a battery-powered touch piano that shows a scrolling piano roll. Tap the screen to trigger notes—the TFT instantly marks their position and length, so you can actually see rhythm patterns as they happen. It's a hands-on way to explore music theory, graphical displays, and sensor input all on one breadboard, and you'll walk away with a device that you can use to compose simple melodies or demonstrate timing concepts.

What You'll Learn

• How resistive touchscreens detect X and Y coordinates and convert them into playable notes
• The relationship between musical pitch and frequency, and how to program a passive buzzer to generate accurate tones
• Real-time data plotting on a TFT display—drawing and updating a dynamic piano roll interface
• Breadboard circuit assembly, including RC filtering with the included resistors and capacitors to clean audio signals

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

Young inventors from age 5 (with adult help) to 15 who want to see music come alive on a screen. It's ideal for ATL Tinkering Lab sessions, CBSE school science exhibitions, or a curious weekend project at home. If your child dreams of making their own instruments or you're introducing basic coding through a rewarding, visual output, this kit delivers a memorable first experience with Arduino and embedded design.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
