Volumetric 3D LED Display Variant 8 Kit with Arduino Mega
8x8x8 Volumetric LED Cube Display Kit with Arduino Mega – Create 3D Animations
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Transform your space into a living light sculpture with this 8x8x8 volumetric LED cube. Every one of the 512 WS2812B LEDs becomes a pixel in a true three-dimensional canvas, capable of displaying complex animations, patterns, and even real-time visualizations. Designed for makers ready to push beyond flat matrices, this advanced kit delivers a captivating centerpiece for home studios, living rooms, or technical exhibitions.
What You'll Build
A towering matrix of individually addressable LEDs arranged in a perfect 8x8x8 grid, controlled by an Arduino Mega. The final cube stands as a luminous sculpture — you can program it to display rippling waves of colour, 3D rain effects, geometric shapes, or any custom animation you design. Once assembled, it becomes both a technical achievement and a striking décor piece that reacts to music, sensors, or standalone code.
What You'll Learn
- Build a 3D LED matrix with precise physical alignment and soldering
- Program WS2812B addressable LEDs with real-time animation control
- Design and implement power distribution for 512 high-current LEDs
- Create custom animation patterns using 3D mathematics and Arduino code

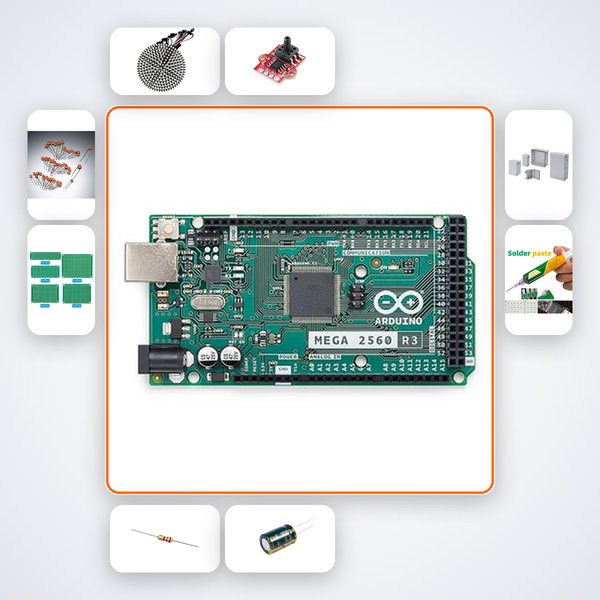

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | x1 |
| WS2812B 8x8x8 Cube Kit | x1 |
| 5V 10A PSU | x1 |
| 470Ω Resistors | x5 |
| 1000µF 6.3V Caps | x3 |
| 100nF Caps | x15 |
| PCB Prototype Board | x5 |
| Enclosure Box | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is designed for experienced electronics makers and artists who want to create large-scale interactive light installations. It's an ideal capstone project for B.Tech ECE/EEE final-year students, a stand-out entry for Smart India Hackathon or tech expos, and a portfolio builder for IIT, NIT, VIT, or BITS graduates aiming at embedded systems roles. It also suits professionals in event tech or creative coding who need a reconfigurable 3D volumetric display for immersive experiences.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to access the AI build companion trained on this exact project. It can guide you step-by-step through troubleshooting, and if needed, reach out via WhatsApp for direct support from our team.
Do I need to write the animation code from scratch?
No. The kit includes a full animation engine with pre-built patterns you can immediately run, modify, and expand. It is compatible with popular Arduino libraries like FastLED and Adafruit NeoPixel, so you can start from hundreds of community examples and customize them.
How is the cube physically assembled?
The WS2812B 8x8x8 Cube Kit contains pre-soldered LED panels that stack and interconnect with precise jigs. You will solder the data lines between panels, mount the assembly in the enclosure, and connect power and control signals. The included soldering iron and wire make it a complete hands-on assembly.
Can I connect external sensors or input to the cube?
Absolutely. The Arduino Mega provides ample I/O pins for adding modules like microphones, motion sensors, or Bluetooth/WiFi shields. With the animation engine's open architecture, you can make the cube react to sound, button presses, or network data for interactive art or IoT displays.
8x8x8 WS2812B addressable LED cube with full 3D animation engine. Each of 512 LEDs individually controlled.
What's in this kit
- Arduino Mega 2560
- WS2812B 8x8x8 Cube Kit
- 5V 10A PSU
- 470Ω Resistors x5
- 1000µF 6.3V Caps x3
- 100nF Caps x15
- PCB Prototype Board x5
- Enclosure Box
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
