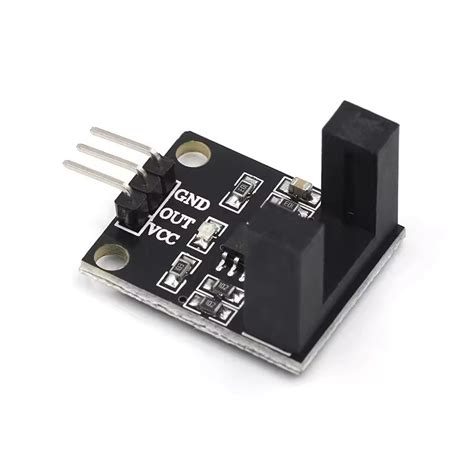

LM393 Encoder Speed Sensor Module – Motor RPM Detection with Comparator

The LM393 Encoder is an infrared speed sensor module built around the LM393 comparator. It uses an IR emitter and phototransistor pair, interrupted by a rotating slotted disc, to generate accurate digital pulses. The on‑board comparator cleans up the raw signal, providing a crisp falling edge on each slot transition. Whether you need to measure motor RPM, count rotations for a robot odometer, or build a custom tachometer, this module delivers reliable performance with minimal wiring.

Key Specifications

What You Can Build With This

• Digital tachometer to monitor motor speed in real time
• Line‑following robot with closed‑loop speed feedback
• DIY anemometer rotation counter for wind speed measurement
• Robot odometer to track distance travelled

Compatibility

Works seamlessly with any microcontroller that has a digital input pin. Ideal for Arduino Uno, Nano, Mega, ESP8266, ESP32, and Raspberry Pi (use a voltage divider if connecting directly to Pi GPIO). The module outputs a 0–VCC pulse train, compatible with both 3.3V and 5V logic levels.

Wiring Notes

Connect VCC to 5V (or 3.3V), GND to ground, and OUT to any digital I/O pin. The on‑board comparator provides a clean signal without the need for external pull‑up resistors. For noisy environments, solder a 0.1µF ceramic capacitor between VCC and GND near the module pins.
