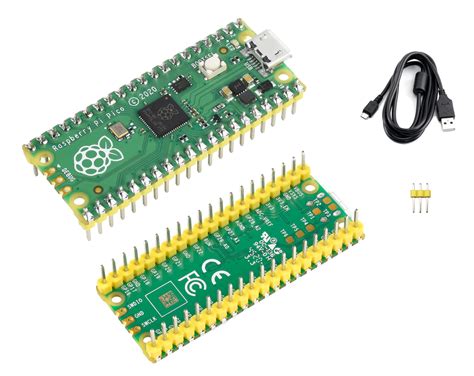

Official Raspberry Pi Pico with Pre-Soldered Header Pins
Official Raspberry Pi Pico Microcontroller Board with Pre-Soldered Header Pins
The Raspberry Pi Pico is a compact, high-performance microcontroller board built around the RP2040 chip designed by Raspberry Pi. Its pre-soldered male header pins let you drop it straight into a breadboard or connect peripherals without any soldering, so you can start prototyping immediately. With 264KB of SRAM, 2MB of flash, and flexible I/O, it is a robust choice for everything from simple sensor loggers to complex embedded controllers.
Key Specifications
| Specification | Value |
|---|---|
| Microcontroller | Raspberry Pi RP2040 |
| Processor | Dual-core ARM Cortex-M0+ @ 133 MHz |
| SRAM | 264 KB |
| Flash memory | 2 MB on‑board QSPI |
| GPIO pins | 26 multifunction (3.3V logic) |
| Analog inputs | 3 × 12‑bit ADC channels |
What You Can Build With This
- A MicroPython blink script on the on‑board LED to learn the basics
- A temperature and humidity monitor using an I2C sensor and a small OLED display
- A USB MIDI controller driven by the PIO state machines for precise timing
- A simple line‑following robot with two DC motors and an IR sensor array
Compatibility
The Pico runs code written in MicroPython, C/C++ (official SDK), or CircuitPython. It operates at 3.3V logic and comes with a 5V‑tolerant USB connector and a VSYS pin that accepts 3.5‑5.5V. The pre‑soldered headers follow a 2.54 mm pitch, so the board fits any standard breadboard and most Pico‑compatible add‑on modules like the Pimoroni Pico Display or the Pico Explorer Base.
Wiring Notes
After plugging the Pico into a breadboard, connect power through the micro‑USB port or apply a regulated 3.3‑5V to the VSYS pin. Every GPIO operates at 3.3V; never feed 5V directly to a GPIO pin. For 5V peripherals, use level shifters or voltage dividers on the data lines. Each GPIO can source or sink up to 4 mA safely, so add external transistors for higher‑current loads.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with the Arduino IDE?
Yes, an unofficial Arduino core for the RP2040 allows you to program the Pico using the Arduino IDE and a wide range of existing libraries.
Does this board have Wi‑Fi?
No, the standard Pico does not include Wi‑Fi. For wireless connectivity, look for the Raspberry Pi Pico W variant.
What programming languages can I use?
You can program the board in MicroPython, C/C++ via the official Pico SDK, or CircuitPython through Adafruit’s port. All three are well documented and actively maintained.
