Real-Time HVAC Digital Twin Monitor Kit with ESP32 Nodes & Raspberry Pi 5

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

When an HVAC system fails in a server room, pharmaceutical cold chain, or industrial cleanroom, the results can be catastrophic. This kit lets you build a complete monitoring solution - five wireless sensor nodes track temperature, humidity, and vibration on critical HVAC equipment, streaming data to a Raspberry Pi 5 that maintains a live digital twin. If the twin detects an anomaly, it triggers a physical alert, giving you time to act before a real failure occurs.

What You'll Build

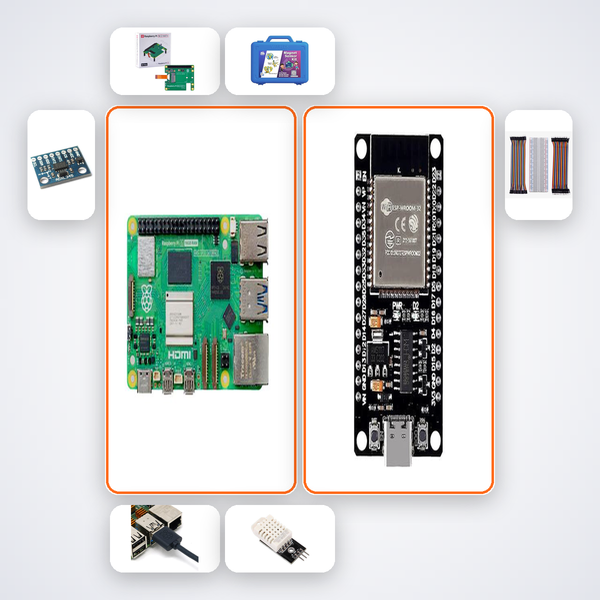

You will assemble five ESP32-based sensor nodes, each equipped with a DHT22 for temperature/humidity and an ADXL345 accelerometer for vibration. These nodes communicate over Wi-Fi to a central Raspberry Pi 5, which stores a 3D digital twin model of your HVAC system in real time. A web dashboard displays live metrics, and an onboard alert system (buzzer or LED) activates when the twin detects an abnormal pattern, such as rising vibration or unexpected temperature swings. The entire system is modular - add more nodes later to monitor additional air handlers or duct sections.

What You'll Learn

• Configure ESP32 microcontrollers to read DHT22 and ADXL345 sensors over I2C and one-wire protocols
• Stream real-time sensor data to a Raspberry Pi via MQTT, building a scalable IoT data pipeline
• Create a digital twin using Python on the Pi that models the HVAC operating envelope and detects anomalies with threshold rules
• Set up persistent storage with NVMe SSD and the Pi 5 M.2 HAT+ for data logging and replay

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is ideal for B.Tech ECE/EEE final-year projects on IoT-based predictive maintenance, Smart India Hackathon teams prototyping industrial monitoring solutions, and CBSE Class 11-12 students with Python and Arduino experience. It's also used in ATL Tinkering Labs and by hobbyists building real-world IoT infrastructure who want to move beyond simple sensor displays into digital twin modelling.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
