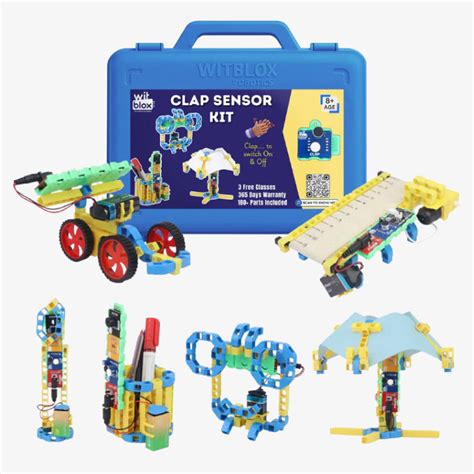

WitBlox Clap Sensor Kit – Sound Activated DIY STEM Learning Module
WitBlox Clap Sensor Kit – DIY Sound-Activated STEM Learning Module
The WitBlox Clap Sensor Kit is a sound-activated electronics module designed for STEM education. Use it to build circuits that respond to claps or loud noises, introducing concepts of sensors and automation. Ideal for students, hobbyists, and educators seeking hands-on DIY projects.
Key Specifications
| Specification | Value |
|---|---|
| Microphone Type | Electret condenser |
| Operating Voltage | 5V DC (3.3V compatible) |
| Output Signal | Digital (active HIGH on sound) |
| Sensitivity | Adjustable via potentiometer |
| Interface | 3-pin (GND, VCC, OUT) |
| Kit Contents | Sound sensor module, jumper wires, WitBlox base |
What You Can Build With This
- Clap-activated lamp or fan switch
- Sound-triggered alarm system
- Voice or clap-based robot control
- Interactive art installation that responds to noise
Compatibility
This kit works with any WitBlox base and other WitBlox modules. Also compatible with Arduino, Raspberry Pi, and any microcontroller accepting 3.3V–5V logic. The 3-pin header connects easily to breadboards or directly to GPIO pins.
Wiring Notes
Connect VCC to 5V, GND to GND, and OUT to a digital input pin. Use the onboard potentiometer to adjust detection threshold. For microcontrollers with 3.3V logic, powering at 5V is safe as the output drops to 3.3V internally.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Uno?
Yes, connect VCC to 5V, GND to GND, and OUT to any digital pin like D2. Use digitalRead to detect sound.
Can I use this without a WitBlox base?
Yes, the sensor module itself can be used standalone with jumper wires on a breadboard or directly on any microcontroller.
How does the sensitivity adjustment work?
Turn the potentiometer clockwise to increase sensitivity (detect softer sounds) or counterclockwise to decrease it, reducing false triggers.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
